Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board

Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board

    • Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board
    • Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board
    • Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board
    • Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board
  • Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board

    Product Details:

    Place of Origin: China
    Brand Name: Shennanyi
    Certification: BS/CE/AS-NZS/GB/CCC/ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Square Meters
    Packaging Details: Wooden Case
    Delivery Time: 15-20 Days
    Payment Terms: T/T, L/C
    Supply Ability: 12000 Square Meters/Month
    Contact Now
    Detailed Product Description
    Color: Any Color Max Size: 2600*6000mm
    Name: Laminated Safety Glass Shape: Flat And Curved
    Thickness: 3mm - 25mm Usage: Building



    Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board



    Description:

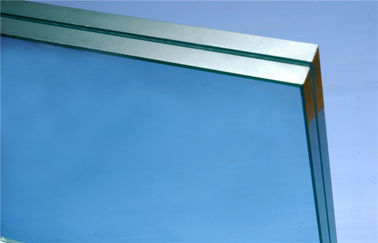

    The laminated glass is one kind of safety made under high temperature by interlaying PVB membrane between glasses. It can be two sheets or more than two sheets.





    1. Features:



    1) Safety Once broken, the broken pieces of laminated glass would not fall down or shoot away, enable the human or facilities be protected from hurt.


    2) Safeguard The laminated glass has strong resistance against theft, malicious destruction and violence


    3) Sound-insulation The PVB film has insulation function to the noise wave, thus the transferring of noise can be weakened.


    4) Anti-UV The additive of PVB can filter 99% of the ultraviolet ray from the sunlight and protect the interior decoration from aging or fading caused by UV.


    5) Heat-insulation The laminated glass(especially for colorful laminated glass) can reduce the solar radiation, saving energy and air-conditioning cost


    6) Fire-proof When heated or roasted, the laminated glass will not break or collapse quickly so as to keep the fire from spreading. Time can be saved for warning, human’s evacuating and extinguishing
    When broken by unexpected force, the broken pieces will be bonded by PVB with radial crack but hurting no people. The original shape and visibility can still be kept for continuous use for certain time.






    2. Application:

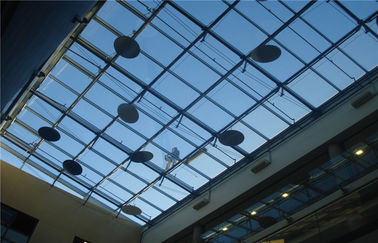

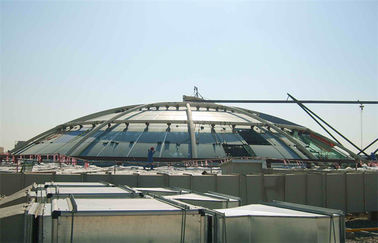

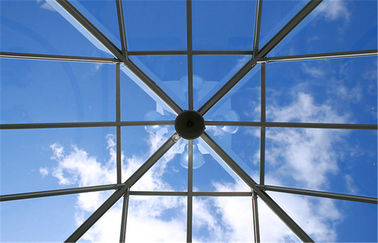

    Used for building ceilings. Kind of safety glass, the glass will not fall down when it’s broken, safe for people.

    Also it’s clear and transparent, good for view and sunlight through.






    3. Specification:




    Max Size: 2600*6000mm
    Min Size: Any
    Sole glass thickness: 3mm-25mm
    Film thickness: 0.38mm and multiple of 0.38mm



    Type: Flat laminated glass, Curved laminated glass, Tempered laminated glass, Laminated insulated glass



    Each PVB film layer thickness is 0.38mm,we will use the right layers according to clients’ actual products






    4. Quality:




    AS/NZS 2208:1996 Safety glazing materials in buildings
    In accordance with CE certificate EN14449:2005
    In accordance with GB9962-1999

    Pass Chinese Safety Glass Compulsory Certification (CCC).

    In accordance with CE Standard



    Flat / Curved Double Laminated Safety Glass , Ceiling Reinforced Glass Board



    Specifications:





    1. Product Name

    Double Laminated Glass For Ceiling

    2. Color

    Any Color

    3. Thickness

    3mm-25mm

    4. Size

    2600*6000mm

    5. Shape

    Flat and Curved

    6. HS Code

    7016909000

    7. Trade Mark

    Shennanyi

    8. Export Market

    Global

    9. Packing

    Wooden Case

    10. Usage

    Building
