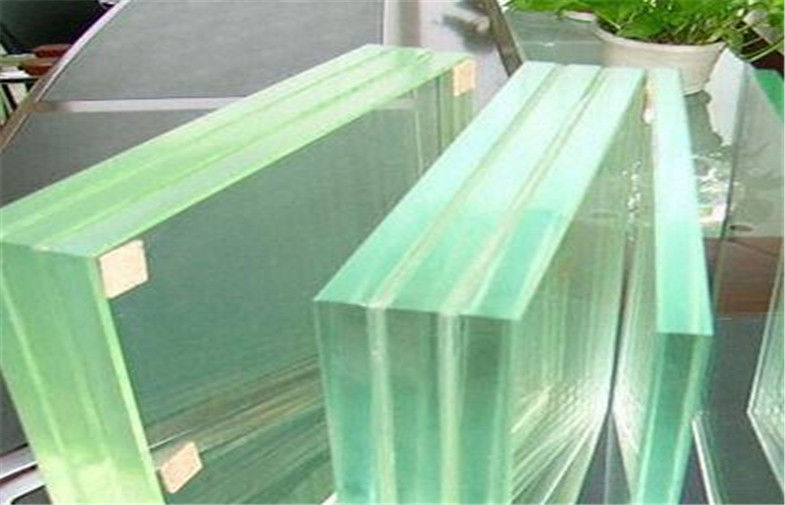

Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass

Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass

    • Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass
    • Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass
    • Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass
  • Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass

    Product Details:

    Place of Origin: China
    Brand Name: Shennanyi
    Certification: BS/CE/AS-NZS/GB/CCC/ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Square Meters
    Packaging Details: Wooden Case
    Delivery Time: 15-20 Days
    Payment Terms: T/T, L/C
    Supply Ability: 12000 Square Meters/Month
    Contact Now
    Detailed Product Description
    Color: Any Color Max Size: 2600*6000mm
    Name: Laminated Safety Glass Shape: Flat And Curved
    Thickness: 3mm - 25mm Usage: Building



    Storm Proof Laminated Safety Glass Flat , SGP Film Toughened Glass



    Description:





    The laminated glass is one kind of safety made under high temperature by interlaying SGP membrane between glasses. It can be two sheets or more than two sheets.





    1. Features:





    1) SentryGlas plus the middle membrane is laminated glass products, the latest invention, which allows the performance of laminated glass beyond the existing technology. Bulletproof-SGP use made of the same thickness SentryGlas plus laminated glass and laminated glass made with polycarbonate considerable performance.
    2) Explosion protection SGP -2.3 mm thickness made of laminated glass to withstand the high success 200Kpa (30psi) explosion overpressure.
    Anti-intrusion - by ASTMF-1233 test, with 9.1 mm and 14.3 mm thickness of the SGP of the laminated glass can be achieved ASTM requirements of secondary and tertiary prevention, but also to the prison windows standards.
    3) Security and anti-storm-SGP should be large glass windows and anti-cyclic pressure, the increased capacity of storm resistant laminated glass.
    SGP features:
    4) Compared with PVB film, SGP is more strenght and more transparent , ultra-clear glass with SGP is the best configuration.
    The strength of SGP interlayer is five times than the normal PVB, and hundred times than normal PVB .






    2. Application:





    Widely used in car windscreens and high buildings or some places have security requirements just like bank, jewelry cabinet and so on.

    Especially for the storm proof and bullet proof area.






    3. Specification:




    Max Size: 2600*6000mm
    Min Size: Any
    Sole glass thickness: 3mm-25mm
    Film thickness: 0.76mm, 1.52mm, 2.28mm or 2.54mm



    Type: Flat laminated glass, Curved laminated glass, Tempered laminated glass, and Laminated insulated glass



    Each PVB film layer thickness is 0.38mm,we will use the right layers according to clients’ actual products






    4. Quality:




    AS/NZS 2208:1996 Safety glazing materials in buildings
    In accordance with CE certificate EN14449:2005
    In accordance with GB9962-1999

    Pass Chinese Safety Glass Compulsory Certification (CCC).

    In accordance with CE Standard







    Specifications:





    1. Product Name

    Storm Proof Laminated Glass With SGP Film

    2. Color

    Any Color

    3. Thickness

    3mm-25mm

    4. Size

    2600*6000mm

    5. Shape

    Flat and Curved

    6. HS Code

    7016909000

    7. Trade Mark

    Shennanyi

    8. Export Market

    Global

    9. Packing

    Wooden Case

    10. Usage

    Buildinga
