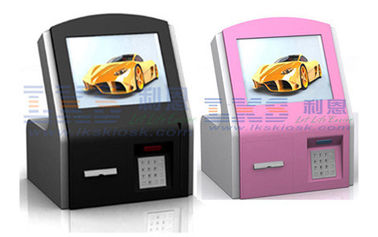

TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera

TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera

    • TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera
    • TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera
  • TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera

    Product Details:

    Place of Origin: China
    Brand Name: LKS or customized
    Certification: CE, FCC
    Model Number: LKS8210A

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Packaging Details: Film Wrap,Foam and Wooden Box
    Delivery Time: 4-6weeks upon payment
    Payment Terms: T/T in Advance
    Supply Ability: 1000-2000 units per month
    Contact Now
    Detailed Product Description
    Material: 1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others Material Feature: Anti-vandal, Anti-dust
    Application: Indoor Supported OS: Windows 7 Or Windows 8 Or Linux
    Display: LCD, TFT, AUO Or Others Optional Size Of Screen: 8inch Or Upon Customers’ Request
    Touch Screen: IR/SAW/Capacitive Warranty: 12 Mounths Since Shipment
    Power Supply: 110-120V, 220V-240V Or Optional Color: Yellow, Gray, Red, Black (Optional)
    Function: Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk... Type: Self Service Kiosk, Payment Kiosk, Touch Screen Kiosk

    TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera







    Main components​ ​​:



    1.  15" LCD/ Touchscreen
    2.  Receipt printer
    3. Barcode Scanner


    Standard hardware components List is as following:



    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM 2GB /4 GB / 8GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Card Dispenser Main Fuction Combination of card issuing IC/RFID card Reading
    Communication Interface  RS232C / USB (HID)
    Card Dimmensions Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
    Card Stacking Capability 120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)
     Metal keyboard with touchpad Keylift‐spanKeylift‐span
    Key force  2~3N
    Key trip  >2.5mm
    Protection level ip65
    Epson receipt thermal printer Autocutter included
    Technology Thermal printing
    Paper width 80mm
    Printing speed 150mm/s
    Data buffer 4KB
    Interface RS232 ,USB
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    Operation System Windows 7 or Windows XP operation system without license
    KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Packing Security Packing method with bubble foam and wooden case


    Other Optional hardware components List is as following:



    1. Contactless Card reader
    2. Wireless Moudal
    3. Web camera
    4. Thermal printer
    5. Barcode scanner
    6. Intercom
    7. Speaker
    8. USB port
    9. Finger printer reader
    10. Swiping Card


    Description


    1. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
    2. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
    3. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
    4. LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.




    Multifunction:


    • Hotel
    • Hospital
    • Gas station
    • Buss station
    • Railway Station
    • Metro Station
    • Parking Lot
    • Fast food stores
    • Banks
    • Convention centers
    • Shopping Mall
    • Other Public areas


    Our Advantages:




    Designed for 24 / 7 operation


    • Tightly integrated hardwre and software
    • vandal resistant components
    • Highly responsive user interaction


    Low Cost Solution



    • Easy of Operation
    • Stable-quality hardward components
    • Complete supply chain management
    • Built on widely used stable provden technology
    • Modular design for easy maintenance


    Elegant Appearance



    • Regular elegant design
    • Attract end customer
    • Human engineering verification
    • Attractive decoration
    • High-quality design sketch
    • Multi-color processed surface


    TCP / IP Network Self Service IC Card Reader Mini Curve With Webcamera
