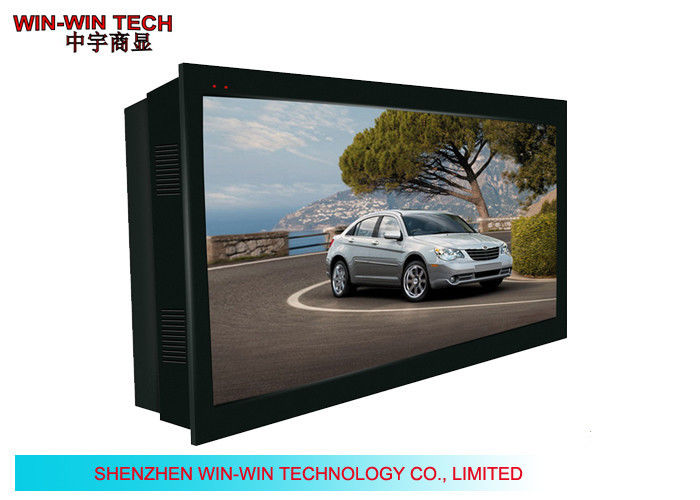

Waterproof Wall Mount Outdoor Digital Signage 1920 x 1080 Low Comsuption

Product Details:

Place of Origin:	China
Brand Name:	LG / SAMSUNG/ AUO
Certification:	CE/ROHS/FCC/SGS
Model Number:	WW-O42W

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

Features:	Anti-dust, Anti-vandal, Anti-theft, Waterproof	Product Name:	LCD Digital Signage Display
Application:	Outdoor	Size Of Panel:	42 Inch
Brightness:	1500cm/d	Feature:	TFT, Touch Screen Kiosk
Standard:	CE/ROHS/FCC/SGS	Type:	Wall Mount
Color:	White, Black, Golden, Silvery
High Light:	waterproof digital signage , outside digital signage

Waterproof Wall Mount Outdoor Digital Signage 1920 x 1080 Low Comsuption

Specifications:

Technical Parameter for LCD Panel	Panel Size		42 inch LCD screen
	Aspect Ratio		16:9
	Active Area		69283 (W) 1753.5 (H) mm
	Max. Resolution		1920x1080
	Dot Pitch		0.681 (H) x 0.681 (W)mm
	Number of Color		16.7M
	Brightness		1500cd/m2
	Contrast Ratio		3000:1
	Responsive Time		6ms
	Panel Life		above 50000 hours
Storage Medium	Flash memory card, SD Card		2gb to 36gb for the capacity
Support Ad files	Video formats		MP4(AVI:DIVX/XVID),MPG2 (DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
	Audio formats		MP3
	Photo formats		JPG
OSD Language	English, Chinese, French, German, Italian, Spanish,Arabic
Audio output	stereo L/R, 5W*2, 8Ω
Power supply	AC 110V - 240V, 50/60HZ
Storage Temperature	-7 to 65 Celsius degree
Video interface	VGA HDMI CVBS S-Video
PC Standard Specification	CPU	H61
	Mainboard	S-ATAII 500GB / 16MB / 7200RPM
	HDD	DDR3-1333 2GB
	Memory	2 x USB, 2xPS / 2.1 x RJ45, 1x Line-in, 1x Earphone, 1xMicrophone, 1xVGA
	PC I/O Connectors	Built -in Realtek RTL8103EL
	Network	Built-in HD audio 8 audio system
	Audio
Waterproof case	Waterproof grade	IP65
	Installs way	The ground installation
	Protective glass	6mm AR safety glass
	Temperature control system	Intelligent and changes in temperature integration air conditioning
	Touch system	Waterproof, prevent strong light touch

Description:

1. Main outer shell is made by extra quality Iron material, side frame adopts Aluminium Alloy Mould, front

frame adopts 4-6mm thickness Tempered glass, which can protect the LCD panel

2.Optional panel size: 15.6”, 17”, 19”, 22”, 24”, 26”, 32”, 39”, 42”, 47”, 55”, 65”, 70”.

3. Different color optional, normally using silvery, white, black.

4. Automatically turn up or down the volume of ad media player after finished the period of time setup to

machine according to your requirements.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

5. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.

6. With lockable door to avoid take away flash memory card and advertising playing program.

7. Built in IR touch screen, using the latest high precision touch technology, unique circuit design, intelligent

decision and infrared anti interference and other advanced technology, strong stability, sensitive response.

8. Vertical solid base, it is easy to operate and install.

9. High brightness, waterproof, dustproof.

Configuration options:

1. Touch screen	Capacitive touch ,Infrared Touch, SAW touch
2. Network version	LAN/WIFI/3G as options, remote control from server.
3. All in one PC	Integrated all in one PC, custom hardware.
4. Standalone Ad functions	With professional ad playerboard
5. Monitor only	With HDMI/DVI/VGA input, flexible connecting your device.

Our products advantage:

1. We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns
long use life and good visual effect.
2. We have English after sale service engineers provide after sales service by English directly, all the problems

can be solved in time.
3. We have our own outer shell&enclosure factory to accept OEM&ODM design order, quite experienced

in customized item for client
