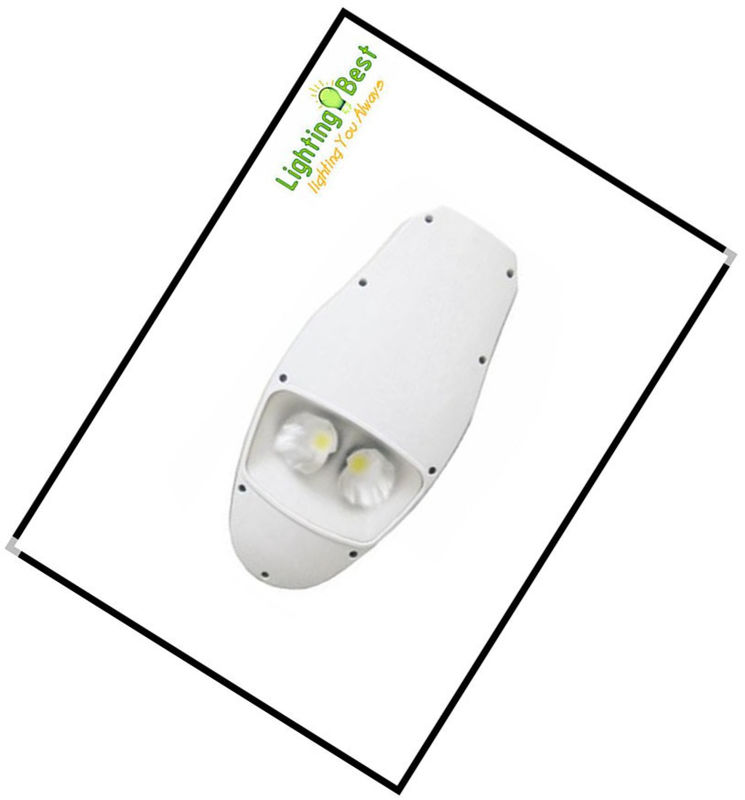

110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp

110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp

  • 110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp
110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp
Product Details:
Place of Origin: China Shenzhen
Brand Name: Lighting Best
Certification: CE RoHS IP65
Model Number: LB-RD760
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Packaging Details: 815x395x230 mm
Delivery Time: 2-15 days depends on order quantity
Payment Terms: T/T, L/C, PayPal
Supply Ability: 7.000pcs/month
Contact Now
Detailed Product Description
High Light:

led roadway lighting

,

solar power outdoor lighting

110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp LB-RD760













LED lamp specification:













Input Voltage

AC85V-265V

Frequency Range

50Hz--60Hz

Harmonic Distortion

≤15%

power Factor

>0.95

Power Efficiency

>87%

Working Voltage

DC30-36V

led quantity

1pc

Led Power

120W / 140W

Lamp Total Power

133W / 158W

LED Chip

   Epistar    or    Bridgelux

 LED luminous efficiency

90±5lm/w    or    100±5lm/w

 lamp's Efficiency

>80%

 Average Illuminance Intensity(60W)

Height  8M

31.5 lux

Height  10M

28.1 lux

Height  12M

25.2 lux

Illuminance  Uniformity

>0.5

Correlated Color Temperature

WW

2700k--3200k

PW

3900k--5000k

CW

5800k--6200k

Color Rendering Index

WW

Ra>68

PW/CW

Ra>75

Light Distribution

Symmetric /Circular light spot

Light Design

LED + Reflector

Working Temperature

﹣40° ~ +45° C

 Storage Temperature

﹣40° ~ +65° C

IP Grade

IP65

Working lifespan

50.000H

Power cable

0.75mm²  trifurcating cable

Connect wire

L  Power line



N  Null line



G  Earth line

Lamp Shell Color

White

Certificate

CE, ROHS,

Lamp weight : G.W./N.W.

13.5 kg/12.5 kg

lamp packing dimension

815x395x230

Structure dimension (mm)
110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp 0

Light distribution curve
110v, 230v, 250v AC 120W / 140W Solar Powered Led Street Lighting, parking lot lamp 1





Specifications:

  • Solar panels: Monocrystalline silicon cells,  low iron tempered glass,  high conversion rate,  high efficiency,  long life,  easy installation,  high wind and hail impact resistant.
  • Controller: Controller specially designed for solar street lamps,  light control and time control,  Protection against overcharge and over-discharge.
  • Battery: Fully-sealed and maintenance-free lead-acid battery,  good high rate starting discharging capability

Applications:

  1. High way,  city main street,  slip street,  fast lane,  residential street,  municipal roads,
  2.  gas stations,  parking lot,  ,  parks,  yards,  inhabitancy area,  factories and some other places where need lighting

More Detail:

1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation ,  low light depreciation,  pure light color,  no double-shadow High intensity,  high resistance of shock or vibration etc.

2, Unique heat sink design perfectly combine with power box,  effectively transmit the heat,  thereby lowering the body’s temperature,  ensure the life of LED chip and power driver.

3, The heat sink surface have conducted anodic oxidation anticorrosive process.,  compact layout and beautiful, corrosion resistant, water proof and dust proof.

4, Apparent energy saving effect,  use high power LED and it is equipped with imported high efficient power,  save more than 70% energy compare with sodium lamp.

5, Eco-friendly non-pollution,  no pollution elements such as lead and mercury,  non pollution to environment.

6, No UV & IR,  good color rendering,  truly present subject’s actual color. Color temperatures are optional,  meet different environment’s requirement,  eliminating the depression caused by traditional lamps’ either high or low color temperature,  visually more comfortable,  and improve working efficiency.

7, Adopt constant current constant voltage power driver,  apply to wide voltage(AC85V-270V),  overcome the problems like unstable and shaky light,  sound pollution and generating power grid cause by ballast,  avoid eye stimulation and fatigue during the work.

8, Excellent adornment effect,  use special surface treatment technology,  various apparent colors available,  easy installation and demolition,  wide range of application.



Competitive Advantage:

1. CE & RoHS & IP65 approved,  Quality Guaranteed

2. Imported original Bridgelux & Epistar chip,  superior light source

3. OEM & ODM welcome,  More than 1 year OEM experience,  independent R&D ability,  patent design.

4. Fast delivery,  2-15 workdays depends on order quantity after payment confirmed

5. Convenient transportation fast delivery,  Close & Easy access to both Shenzhen Seaport and Airport.

6. Flexible,  small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item

7. Reliable quality & credit,  3 years warranty and 50.000 hours lifespan



Call us today for more Details and Discount.

Together,  we can do more than you ever imagine!!!
