| Place of Origin: | China |
| Brand Name: | Jinshi |
| Certification: | IEC/TUV 61215, 61730, CE, ISO 9001:2008 |
| Model Number: | NBJ-230M |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | FOB Ningbo |
| Packaging Details: | wooden pallet with paper cartons, or wooden carton, or according to your requirements |
| Delivery Time: | 15 days, if samles, 7 days |
| Payment Terms: | T/T 30% in advance, and the 70% should be paid before delivery |
| Supply Ability: | 500pcs/ day |

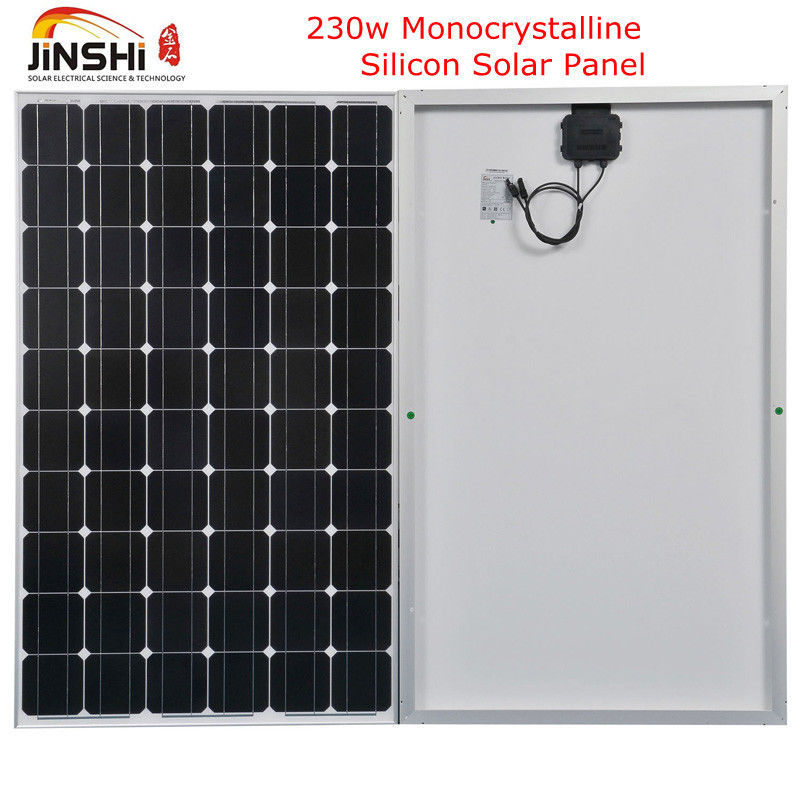

230w Multi/Monocrystalline Silicon Solar Panel with Low Iron Tempered Glass
Contact: Twinkle
E-mail: sales03@jinshisolar.com / wj0063@hotmail.com
Skype: sunnywong1202
Tel: 86-574-26877723
Fax: 86-574-26877727
Website: www.nbj-pvsolarpanels.com
Description:
1.high conversion efficiency
2.sealed with high transparency low-iron tempered glass, anti-aging EVA, high insulation TPT.
3.withstand 2.4Kpa wind load, 5.4Kpa snow load.
4.with IEC/TUV 61215/61730, CE, ISO
Warranty:
1) 5 years for material & workmanship;
2) 12 years for 90% power output;
3) 30 years for 80% power output.
MOQ: 50pcs
Delivery Time: 10-20 days after order confirmation
Payment Terms: T/T 30% in advance, and the balance should be paid before delivery.
Packing: Wooden carton or pallet packing
| Model | NBJ-230M |
| Maximum Power at STC (Pmax) | 230Wp |
| Maximum Power Voltage (Vmp) | 30.12V |
| Maximum Power Current (Imp) | 7.64A |
| Open-circuit Voltage (Voc) | 36V |
| Short-circuit Current (Isc) | 8.18A |
| Cell Effiiciency (%) | 16.4% |
| Module Efficiency (%) | 14.1% |
| Operating Temperature(℃) | -40℃～+90℃ |
| Maximum System Voltage(V) | DC 1000V(TUV) / DC600V(UL) |
| Maximum Rated Current Series(A) | 15A |
| Power Tolerance | 0～+3% |
| Temperature Coefficients of Pmax | (-0.45±0.05)%/℃ |
| Temperature Coefficients of Voc | (-0.35±0.02)%/℃ |
| Temperature Coefficients of Isc | (0.05±0.01) %/℃ |
| NOTC(℃) | (47±2)℃ |
STC: Irradiance 1000W/M2 Module Temperature: 25℃ AM=1.5
Packing Configuration:
| 1*20'GP | 240pcs/ 8 pallets |
| 1*40'GP | 560pcs/ 18 pallets |
| 1*40'HQ | 630pcs/18 pallets |
