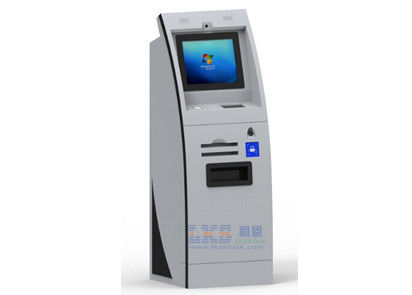

Airplane Boarding Kiosk Passergers Check In Passport Information Processing

Airplane Boarding Kiosk Passergers Check In Passport Information Processing

    • Airplane Boarding Kiosk Passergers Check In Passport Information Processing
    • Airplane Boarding Kiosk Passergers Check In Passport Information Processing
    • Airplane Boarding Kiosk Passergers Check In Passport Information Processing
    • Airplane Boarding Kiosk Passergers Check In Passport Information Processing
  • Airplane Boarding Kiosk Passergers Check In Passport Information Processing

    Product Details:

    Place of Origin: China
    Brand Name: LKS / ODM / OEM
    Certification: CE, FCC
    Model Number: LKS8383B

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Units
    Packaging Details: Film wrap, foam and wooden box
    Delivery Time: 4-6 weeks upon payment
    Payment Terms: T/T in advance, Western Union, L/C
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    OS: Windows 7 / Windows 8 / Linux ID Scanner / Reader: Duplex ID Scanner And Reader
    UPS Sustains: 15 Minutes At Least A4 Printer: Laser Black And White
    A4 Scanner: Automatically Storage And Invoke Passport Scanner: OCR Function

    Airplane Boarding Kiosk Passergers Check In Passport Information Processing


    Standard configuration:



    1. 17 inch monitor
    2. 17 inch IR touch screen
    3. Industrious PC
    4. A4 scanner with OCR function
    5. A4 Laser printer
    6. Fingerprint reader
    7. Digital signature pad
    8. Passport scanner
    9. ID reader
    10. Speaker
    11. Webcam
    12. UPS
    13. Free standing single screen cabinet


    Specification  is as following:


    Components Details
    PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
    CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
    RAM 2GB /4 GB / 8GB
    HDD 500G
    Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
    PC Power Supply HUNTKEY/Great Wall
    LCD monitor Screen Size 21.5 inch ( optional from 8inch to 65inch)
    Brightness 250cd/m2
    angle horizontal 100°above;Vertical 80°above
    Contrast 1000:1
    Backlight tube life more than 40,000hours
    Max. resolution 1280×1024
    Touch screen Screen Size 21.5 inch Diagonal ( optional from 8inch to 65inch)
    Resolution 4096x4096
    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
    Fingerprint reader Interface RS232,USB
    Resolution 500 dpi
    Reading area 14.6mm(Standard width);18.1mm(Standard Length)
    Grayscale 8 bits
    Digital signature pad Size of the induction zone 4*3 inch
    Digital board resolution 2000 LPI
    Digital pen induction height 15 mm maximum
    Reading rate 100 pps
    Contactless IC/ NFC / RF card reader Card type ISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
    Status LED indicator to show the power or communication status
    Interface Support  ISO14443
    ID Scanner Pixel 500 million,resolution 2592X1944
    Image output JPG,BMP,TIF,PDF,TGA,PCX,PNG,RAS  type;color,gray ,monochrome;
    Sensor CMOS
    OCR Extract to word file
    Passport scanner Type Flatbed color image sensor
    Image sensor CMOS CIS ( Contact image sensor)
    Paper thickness >0.1 mm
    Resolution  600 dpi
    Scanning Area 5*3 inch
    Interface RS232 ,USB
    A4 printer Interface High speed USB / RS 232
    Resolution 4800*2400 maximum
    Printing speed 20 pages /second
    Capacity of paper bos 2100 A4 sheets maximum
    A4 scanner Resolution 600 dpi
    Scanning speed 7.5 s/ A4 page
    Scanning mode Color,Grayscale,Monochrome,Automatic Mode Detection
    Scanning type Single sheet,simplex,color scanning with CDF
    Interface High speed USB
    Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
    Webcam 500 million pixels,USB driver
    UPS Input voltage 145-290va
    Output voltage 200-255va
    Max time for supplying a single PC 3~20minutes (for single PC)
    Digital Power Supply AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    AC input voltage range 100~240VAC
    Frequency 50Hz to 60Hz
    Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
    KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
    Packing Security Packing method with bubble foam and wooden case



    Other Optional hardware components List is as following:


    1. Palm vein scanner
    2. WIFI or 3G / WLAN / 4G Wireless module
    3. Cash validator
    4. Coin validator
    5. Cash dispenser
    6. Coin dispenser
    7. Receipt printer
    8. Bank card reader
    9. Handset
    10. Contactless card reader
    11. Photo printer




    Other Applications

    • Airplane boarding room
    • Tourism destination
    • Supermarket
    • Police office
    • School
    • Shopping mall
    • Retail store
    • ATM / VTM booth
    • High railway boarding room
    • Bank
    • Museum
    • Human resources room
    • Railway Station
    • Metro Station
    • Highway station
    • Bus station
    • Other Public area




    Our Advantages:

    Design for  24 / 7 Operation


    • No staff needed except routine maintenance
    • Uninterruptable power supply to sustain every check in procedure
    • Power saving and modular devices
    • Fixed on floor and lockable,with sensor larm system


    Cost-saving Strategy


    • Operation friendly,maintenance free
    • Independent modular hardward devices
    • Outstanding supply chain management




     Appearance


    • Art-of-state design
    • Customizable decorations
    • High-quality design sketch
    • Ergonomic design






    The reason you choose LKS:



    1. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
    2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
    3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
    4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
    5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
