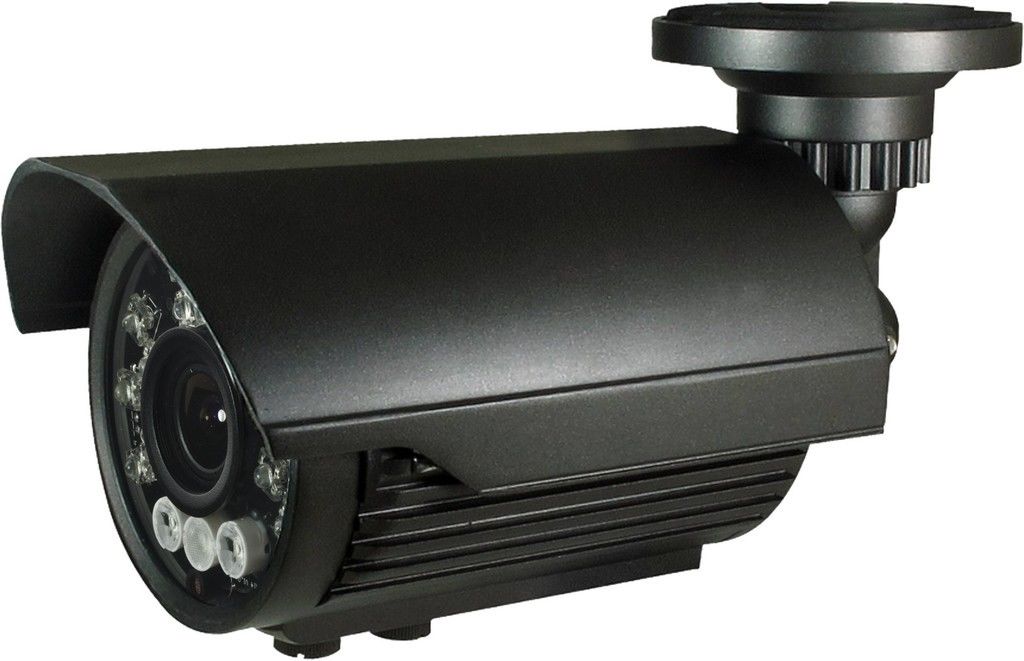

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

Product Details:

Place of Origin: China
Brand Name: NIHON
Certification: CE,ROHS,FCC
Model Number: NIFC90NTG3

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Get latest Price
Packaging Details: Packed in Carton
Delivery Time: 1 Weeks
Payment Terms: T/T ,L/C,West Union
Supply Ability: 200,000 Set One Month
Contact Now
Detailed Product Description



SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera





Quick Details:

Dot-matrix infrared camera

SONY/SHARP CCD/CMOS Optional(420TVL-1000TVL)

IR Led:3pcs 30u array IR and 14pcs piranha led

IR range:100m

Standard match 2.8-12mm Manual Zoom Varifocal lens, 5-50mm lens is optional

3-Axis Cable built-in bracket suitable for wall and ceiling installation

Water Resistant Rate:IP66



SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

Specifications
Module CMOSHA CMOSQA SFE3QB SFC3OQ SL3OQA SFP3Q
Image Sensor

1/3" COLOR

CMOS

1/3" COLOR CMOS

1/3" COLOR SONY Super HAD II CCD

1/3" COLOR SONY CMOS

1/3" COLOR SONY Super HADⅡ CCD 1/3" COLOR SONY Super HADⅡ CCD
Signal System PAL/NTSC
Resolution 600TVL 700TVL 700TVL 1000TVL 600TVL 700TVL
Sensor   PC3089 PC1099

P: ICX811AK





N: ICX810AK



IMX138 P: ICX639AK

N: ICX638AK

P:ICX663AK





N:ICX662AK



Minimum Illumination  0.01LUX 0.01LUX 0.05 0.01LUX 0.01LUX 0.05LUX        Sense-up :0.01/Lux

S/N Ratio

48dB(min)

(AGC closed)

48dB(min)

(AGC closed)

48dB(min)

(AGC closed)

48dB(min)

(AGC closed)

48dB(min)

(AGC closed)

52dB(min)

Electronic Shutter Speed 1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR - - D-WDR D-WDR D-WDR S-WDR
DNR - - 2D-DNR 3D-DNR 3D-DNR 3D-DNR
OSD - - OSD OSD OSD OSD
IR-Smart - - On/Off - - On/Off

White Balance Auto White Balance Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control AUTO Auto/Manual/Off
Back light Compensation  ON ON/OFF
Gamma Correction 0.45
Synchronization   Internal
Video Output  1.0Vp-p, 75Ω
Power Source DC12V (9V ~ 15V)
Operating Temp. -20℃~60℃ / 10% ~ 95%RH





 OEM/ODM available:



1).Silk print logo on the camera;

2). Customized camera housing;

3).Customized Color box





SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera

SONY CCD / CMOS Board Dot Matrix Camera IR , Waterproof Bullet Camera
