Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial

Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial

    • Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial
    • Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial
    • Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial
    • Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial
  • Rubber / Wood Laminated Safety Glass Autoclave Door For Automotive Industrial

    Product Details:

    Place of Origin: China
    Brand Name: OLYMSPAN
    Certification: CE, ASME
    Model Number: FJK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 5,000~50,000
    Packaging Details: Shipping standard
    Delivery Time: 2 Months
    Payment Terms: T/T,L/C
    Supply Ability: 30 Sets Per Month
    Contact Now
    Detailed Product Description

    Wood Glass Laminating Autoclave Door , Pressure In Autoclave By Plc Automatic Control


    Quick Details:

    Medium: air
    type: Laminated Glass Autoclave
    Overall dimension : 7×2.8×3
    Raw Material: sand lime brick, flyash brick, slag brick, aerated concrete block, etc.


    Description:

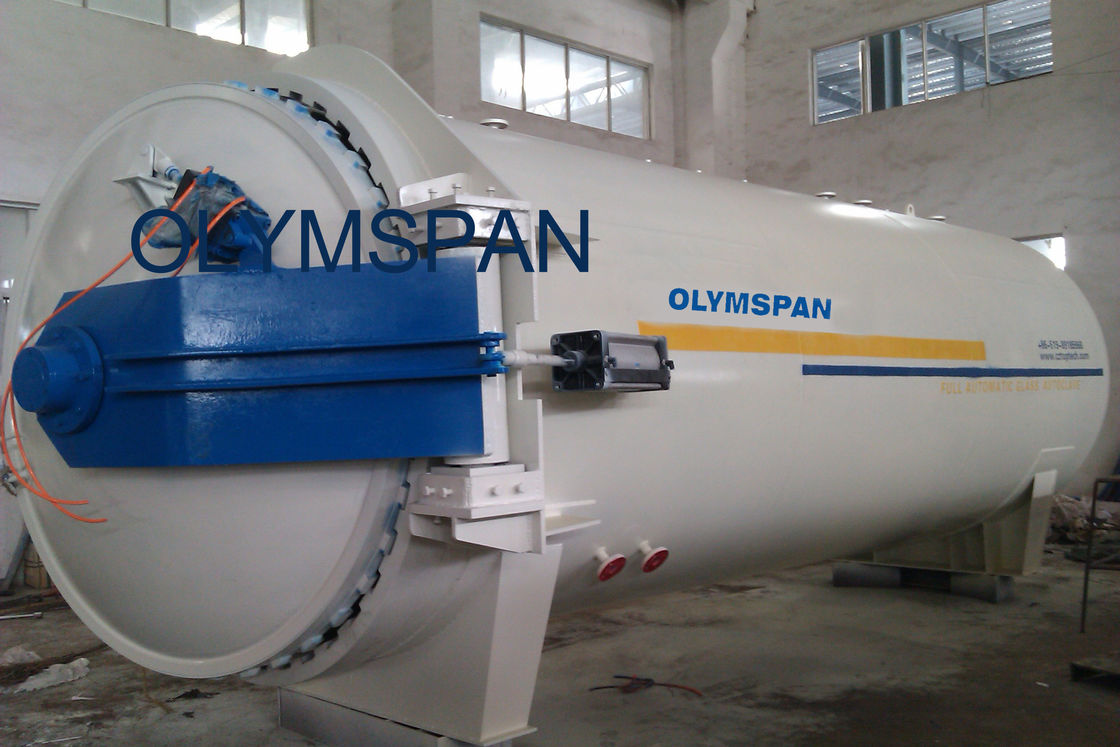

    Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.
    It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.

    Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.

    Specifications:

    Items

    Unit

    Specifications and Parameters

    FJK1.4-1.65×4D

    FJK1.5-2×5D

    FJK1.5-2.5×5D

    FJK1.5-2.68×5D

    FJK1.5-2.85×5D

    Inside diameter

    M

    1.65

    2

    2.5

    2.68

    2.85

    Effective length

    M

    4

    5

    5

    5

    5

    Design pressure

    Mpa

    1.4

    1.5

    1.5

    1.5

    1.5

    Design temperature

    °C

    150

    150

    150

    150

    150

    Working pressure

    Mpa

    1.3

    1.4

    1.4

    1.4

    1.4

    Working temperature

    °C

    150

    150

    150

    150

    150

    Medium



    air

    air

    air

    air

    air

    Gauge

    MM

    900

    1000

    1000

    1000

    1000

    Effective volume

    M3

    10

    18

    25

    28

    31

    Gross weight

    T

    7

    9

    16

    25

    30

    Overall dimension

    M

    6×2.5×3

    7×2.8×3

    7×3×3.5

    7.8×3.2×3.8

    9×3.5×5


    Applications:

    1. Wood industry
    2. Brick industry
    3. Rubber industry
    4. Food industry
    5. Glass industry

    Competitive Advantage:

    Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

    Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
