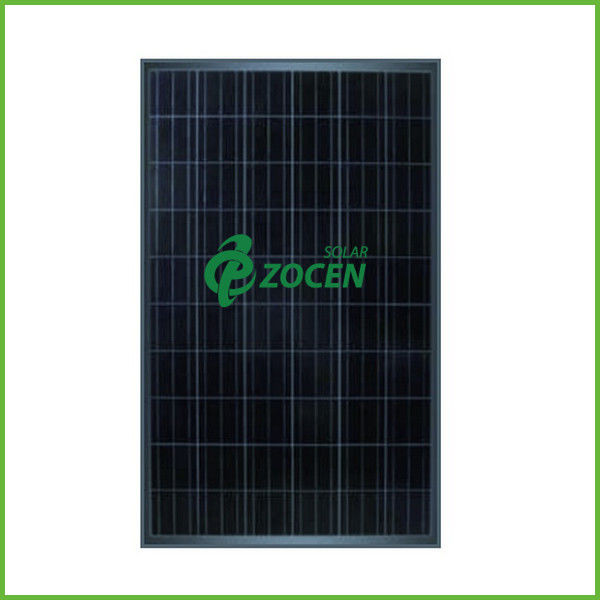

Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC

Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC

    • Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC
    • Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC
    • Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC
    • Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC
  • Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC

    Product Details:

    Place of Origin: China
    Brand Name: ZOCEN
    Certification: CE, CQC, IEC61215, IEC61730, TUV, CEC, MCS, CHUBB, BV, ISO9001
    Model Number: ZCP6-60P-250W

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: 24 pieces per pallet
    Delivery Time: 10-15 days
    Payment Terms: Ex works
    Supply Ability: 1500 pcs / month
    Contact Now
    Detailed Product Description




    • Product name: 250W Polycrystalline PV solar panels
    • Solar cell: 156*156mm(6 inch) Poly-crystalline Sillicone Cell
    • Tempered Glass: 3.2mm Low Iron and Anti-reflective coating, Mechanical load ≥2400Pa , transmittance ≥91.6%
    • EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
    • Back Sheet: to prevent destroying and water
    • Aluminum Frame: to improve the corrosion resistance and strength
    • Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
    • Power specification at 1kW/m 2, AM1, 5
    • Output cable: multi contact connectors

    Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC





    1> Specifications

    • 250W Polycrystalline PV solar panel I-V Curves

    Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC



    • 250W Polycrystalline PV solar panel Electrical Characteristics
    Maximum Power(Pmax)
    250W
    Power Tolerance
    ±3%
    Open Circuit Voltage(Voc)
    37.30
    Short Circuit Current(Isc)
    8.73
    Maximum Power Voltage(Vmp)
    30.10
    Maximum Power Voltage(Imp)
    8.31
    Module Efficiency
    15.37%
    Max. System Voltage
    1000VDC
    Solar Cells

    Polycrystalline156*156mm(6 inch)

    Cells series
    60cs(6*10)
    Bypass Diodes
    6pcs 12A
    Temperature Coefficients of Pmax
    -0.47%/°C
    Temperature Coefficients of Voc
    -0.33%/°C
    Temperature Coefficients of Isc
    0.05%/°C
    NOTC-Nominal Operating Cell Tepm.
    45℃(±2°C)
    STC Condition
    1000W/m2, AM1.5, 25°C





    • 250W Polycrystalline PV solar panel Mechanical Characteristics
    Dimension
    1640*992*40(mm)
    Frame
    Anodized Aluminum Alloy
    Construction

    Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

    Output cables

    4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

    Weight
    19.5KGS



    • 250W Polycrystalline PV solar panel Packing configuration
    Container
    40“HQ
    Module dimension
    1640*992*40mm
    Pieces per pallet
    24 4
    Pallets per container
    28 14
    Pieces per container
    728





    5> Quality Control

    • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
    • Manufacturing facility certifed to ISO9001 Quality Management System standards.
    • Module packaging optimized to protect product during transportation and minimize on-site waste.

    2> Warranty & Certification

    • Warranty: 25-year linear performance warranty and 10-year product warranty
    • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
    • Insulation Class II / Safety Class II
    • CHUBB Insurance



    3> Features:

    • High Performance Solar Panel
    • Monocrystalline Cells
    • Low Reflection of Sunlight
    • High Light Absorption
    • Functions perfectly under low light or panel being partly shaded
    • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
    • CHUBB insurance company to guarantee the quality



    4> ZOCEN SOLAR



    Laminated 250W High Output Polycrystalline Silicon Solar Panel 1000VDC
