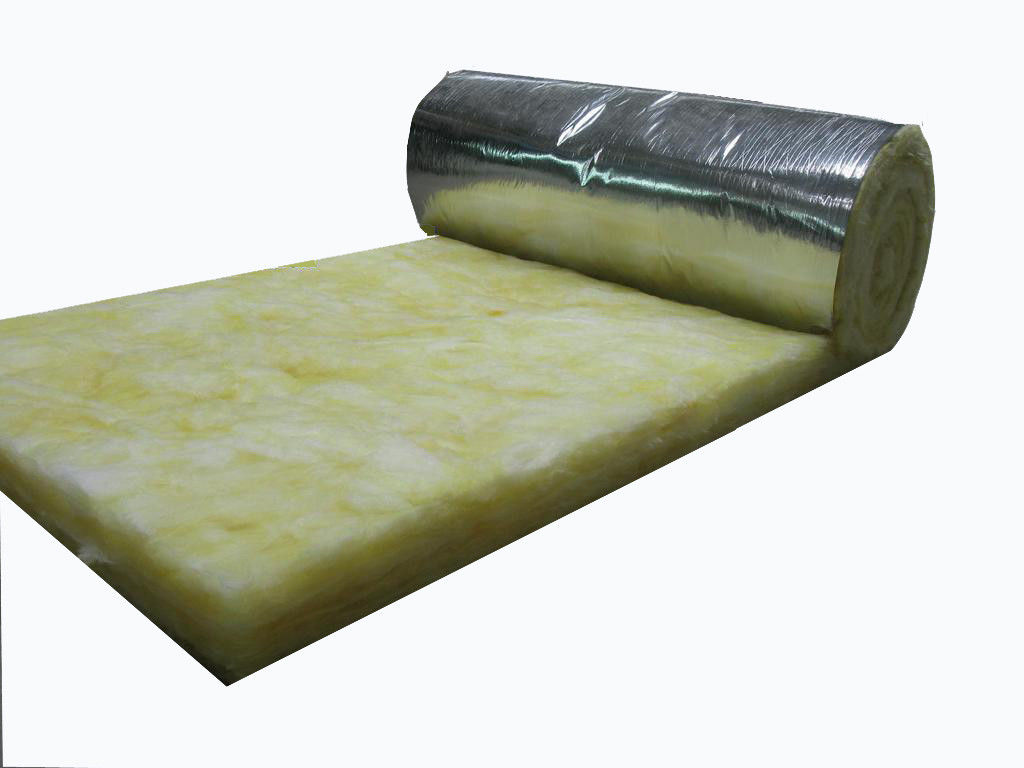

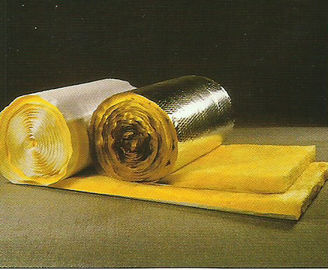

FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation

FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation

    • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation
    • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation
    • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation
    • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation
    • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation
  • FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE, ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: Full container load
    Price: FOB, CNF
    Packaging Details: PE Bag
    Delivery Time: In 10 days after order
    Payment Terms: T/T
    Supply Ability: 10000 tons
    Contact Now
    Detailed Product Description
    Density: 10, 12, 16, 20, 24, 28, 32, 48 Kg/m3 Length: 5500 - 30000 Mm
    Product Name: Glass Wool Blanket Surface: Aluminum Foil / Black Tissue
    Thickness: 25 - 100 Mm Width: 600 900 1200 Mm



    FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation



    Quick Detail:



    GLASSWOOL BLANKET INSULATION FOR DUCT usually faced with aluminum foil or black tissue used as the thermal and insulation material for the duct work of the air conditioning system





    Description:



    GLASSWOOL BLANKET INSULATION FOR DUCT WRAP is a highly efficient, resilient, and easy to handle flexible blanket insulation composed of fine, stable and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting resin. It can be laminate with different facing materials including aluminum foil, fiberglass cloth etc for some particular purposes.





     Applications:

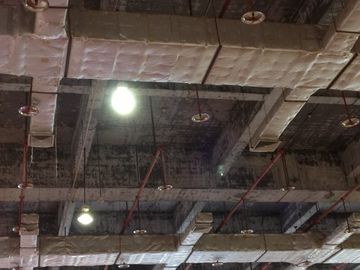

    Tungkin GLASSWOOL BLANKET INSULATION FOR DUCT WRAP is designed for use in commercial, institutional, industrial and residential construction as thermal and acoustical insulation of heating, air conditioning and dual temperature ducts and air handling equipment. This product helps prevent condensation when properly applied to air conditioning ductwork.

    GLASSWOOL BLANKET INSULATION FOR duct wrap is available with faced with aluminum foil (FSK), white metalized scrim kraft or other specific vapor barrier facings.

    The choice of proper facing is important it helps to preserve the inherent fire safety of metal building. The facings brighten the building interiors due to their high light reflectance, reduce the cost of interior lighting, contribute to and effective vapor barrier and to the control of condensation and dripping moisture.





    Specifications:



    Standard product sizes:

    Density

    (Kg/m3)

    10

    12

    16

    20

    24

    32

    48





    Thickness

    (mm)



    38

    25

    25

    25

    25

    25

    50

    50

    40

    40

    40

    40

    40

    75

    75

    50

    50

    50

    50

    50

    100

    100

    75

    75

    75





    150

    150

    100

    100

    100



















    Length

    (mm)

    5500-30000



    Width

    (mm)

    600 900 1200





    Other size can be made upon request.



    Technical Property

    Density



    Tolerance

    Thermal

    Conductivity

    At24°C(+5-2)

    Service

    Temperature



    Fiber

    Diameter



    Shot Content



    Moisture

    Resistance



    Combustibility

    (Kg/m3)



    W/ (m.k)

    °C

    mm

    %

    %



    10

    +2

    -1

    <=0.04



    >=350







    5-8







    <=0.2







    <=1.0





    (A)

    Non-combustible

    12



    <=0.039

    16



    ±2

    20

    <=0.037

    24



    <=0.035



    >=350

    28

    32

    ±3





    Chart of Thermal conductivity



    FSK Glass Wool Felt For Duct Wrap , Fiberglass Blanket Insulation





    Sound Absorption Coefficient



    (Reverberation room method)

    Density (kg/m3)



    Thickness (mm)

    250,500,1000,2000HZ

    (Average)



    10, 12

    50

    0.6

    75, 100

    0.8



    16,20

    25

    0.4

    40, 50

    0.6

    75, 100

    0.8

    24,28,32

    25, 40

    0.7

    50,75, 100

    0.8

    48

    20,25

    0.6



    40,50

    0.8



    Other size can be made upon request.





    Competitive Advantage:



    Fire resistance, excellent thermal conductivity and resistance, excellent acoustical property, light weight
