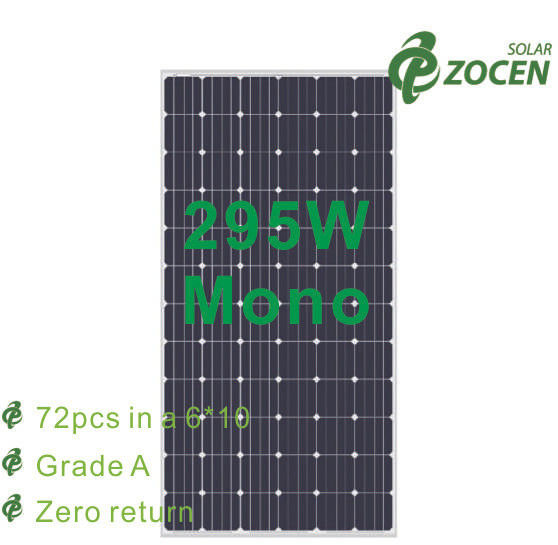

295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating

295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating

    • 295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating
    • 295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating
    • 295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating
  • 295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating

    Product Details:

    Place of Origin: China
    Brand Name: ZOCEN
    Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
    Model Number: ZCM6-60P-295W

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: 21pcs per pallet
    Delivery Time: 5-10 days
    Payment Terms: Ex works
    Supply Ability: 30000pcs/month
    Contact Now
    Detailed Product Description

    295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating



    1> Features



    – High performance, monocrystalline solar cells deliver a solar panel series effciency of up to 15.5%, reducing installation costs and maximizing the power output per unit area.


    – Tight positive power tolerance ensures solar panels are delivered at or above rated power, improving system performance through the reduction of solar panel mismatch loss.









    2> Quick Detail:

    • Materials: 156*156mm Monocrystalline solar cells
    • Model: ZCM6-72P-295W
    • Certificate: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
    • 25-year linear performance guarantee

    • 10-year extended product workmanship warranty



    3> Description:

    1. Product name: 295W Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
    2. Solar cell: 156*156mm(6 inch) Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
    3. Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
    4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
    5. Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
    6. Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
    7. Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
    8. Life time: 25 years
    9. Power specification at 1kW/m 2, AM 1, 5
    10. Output cable: multi contact connectors
    11. Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
    12. Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO



    4> Features:

    • High Performance Solar Panel
    • Monocrystalline Cells
    • Low Reflection of Sunlight
    • High Light Absorption
    • Functions perfectly under low light or panel being partly shaded
    • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
    • CHUBB insurance company to guarantee the quality



    5> Specifications

    • 295W Monocrystalline solar panel Electrical Characteristics
    Maximum Power(Pmax)
    295
    Power Tolerance
    0~3%
    Open Circuit Voltage(Voc)
    44.60
    Short Circuit Current(Isc)
    8.68
    Maximum Power Voltage(Vmp)
    36.40
    Maximum Power Voltage(Imp)
    8.12
    Module Efficiency
    15.20%
    Max. System Voltage
    1000VDC
    Solar Cells

    Monocrystalline156*156mm(6 inch)

    Cells series
    72pcs(6*12)
    Bypass Diodes
    6pcs 12A
    Temperature Coefficients of Pmax
    -0.47%/°C
    Temperature Coefficients of Voc
    -0.35%/°C
    Temperature Coefficients of Isc
    0.05%/°C
    NOTC-Nominal Operating Cell Tepm.
    45℃(±2°C)
    STC Condition
    1000W/m2, AM1.5, 25°C





    • 295W Monocrystalline solar panel Mechanical Characteristics
    Dimension
    1956*992*45(mm)
    Frame
    Anodized Aluminum Alloy
    Construction

    Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

    Output cables

    4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

    Weight
    22.5KGS









    5> Quality & Safety:

    • Rigorous quality control meeting the highest international standards
    • High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
    • ISO 9001:2008 ,ISO 14001:2004 and OHSAS18001
    • IEC61215,IEC61730,Safety Class II,conformity to CE
    • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
    • CHUBB insurance company to guarantee the quality
    • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
    • Panel packaging optimized to protect product during transportation and minimize on-site waste.



    6> Shipment





    295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating



    295W Tempered Glass Monocrystalline Solar Panels With Anti - Reflective Coating

    Shipment
