Product Details:
Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EDMC 80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD12,000 / set
Packaging Details: steel frame / container
Delivery Time: 20-40working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets / months
Contact Now
Detailed Product Description
Type Of Dust Collector: Dust Collection System Cleaning Type: Cyclonic Filter
Gas Temperature: Ambient Room Temperature Material: Steel / Stainless Steel
Air Flow: 5000 M3/H Filter Speed: 1.20-1.50 M/min
Filter Bags: Polyester Filter Bag Shape: Cylcone Dust Collector
High Light:

Metal Dust Collector

,

Dust Collecting System



Cartridge Dust Collector Dust Collection System For Glass Production Plant





Cartridge dust collector dust collection system for glass production plant .  There is heavy dust spraying during the process of glass moving , loading and unloading .



Meanwhile ,bag filter units  applied for cement transfer conveyor dusty point ,  mining area  ,  polishing process,  sanding process , feeding process dust suction, etc.





Brief Introduction :

ECOGRACE smaller dust extraction Filter Unit  generally  pulse jet type dust collector and sold by assemble in whole for shipping . It is generally with smaller air flow from 2000 M3/H to 30000 M3/H , which is small in outside dimention , and we will design the most reasonable dimention for easy container loading and shipping , no need more installatino work at production site . It will be assembled in whole and put into the container , you can directly start when take out from container .



Dust Collector  technical specification :

Model No.

EDMC 100

Air Flow

11000 M3/H

Filter  speed

1.2 M/min

Temperature of the gas

Room ambient

Filtration area

140 M2

Filter media

Polyester filter bag

Filter bag size

D130X3000

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

 1.5  inch

Resistance

<1000 pa



Working Principle of cyclone dust collector filter unit  :

1. The compostion of small dust collector unit  :

Single Baghouse and assembled in whole before shipping and only one step before starting .

Assmebled Filter Unit ,  Fan , PLC , air compressor .

The heavier particle will be fall down by cyclone first ,   it will save the abrasion on the fabric filter in baghouse filter in the second step bag filtration .

2. The filter  cleaned  by solenoid valve pulse.  ASCO and GOYEN is the regular band we take .

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .



Advantage of ECOGRACE smaller dust collector Filter Unit :

1. Easy operation maintenance.Single baghouse .

2. Assembled when EX work from our factory and no more  intallation work needed.

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

4. Energy saving

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.

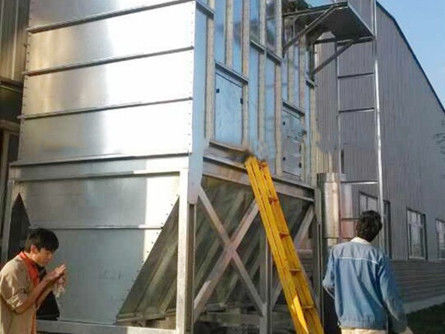

ECOGRACE project show :



Cartridge Dust Collector Dust Collection System Cartridge Filter Industrial Filter 0



Production and shipping  :





Cartridge Dust Collector Dust Collection System Cartridge Filter Industrial Filter 1
