|Place of Origin:||Zibo, China|
|Minimum Order Quantity:||1*20GP|
|Packaging Details:||Carton box and pallet|
|Delivery Time:||7-25 days after advance deposit|
|Product Name:||Fireproof Insulation Board||Bulk Density:||260-350Kg/m3|
|Feature::||Light Weight, Low Thermal Conductivity, High Strength||Usage::||Glass Furnace,Coke Oven,Blast Furnace|
|Material::||Calcium Silicate||Temperature Range:||650 º C - 1100º C|

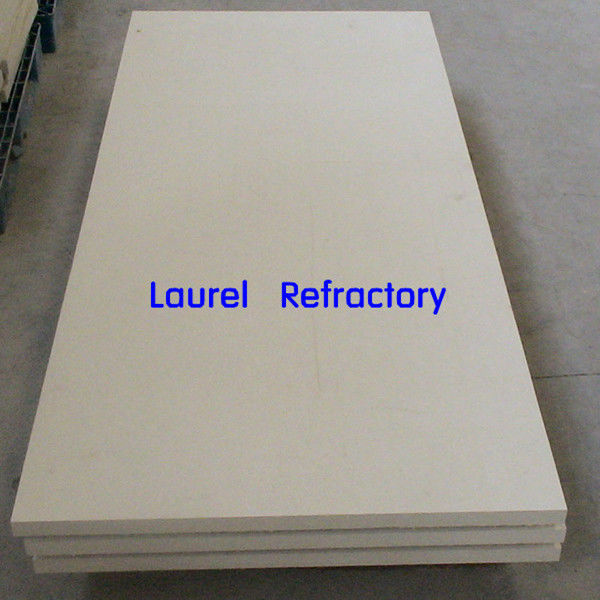

Fireproof Calcium Silicate Boards , High Temperature Insulation Board
Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperature from 650C up to1100C. It is light weight, low thermal conductivity, high strength, easy to install, reliable and durable. There are 3 grades available namely 650 &1000 & 1100 which are commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction. It not only provides energy saving, also increases production efficiency and gives personnel protection in industrial safety aspect. And in the housing construction Calcium Silicate Board is also used as the ceiling, fireproof and heat insulation materials of wall and sound absorption materials of decoration.
Reheating furnace -Annealing furnace-Transfer ladle -Rotary kiln-Glass tank Dip tubes and spouts Nozzles -Shuttle kiln -Tunnel kiln -Aluminum melting and holding furnace- Distribution boxes, Flow gates Hot pipe supports-Other high temperature ovens or heat processing equipments
650 & 1000 C 600-1000 mmX 300-500mm X 25-100mm Speicial deimension will be as per customer request
High temperature calcium silicate board is a kind of inorganic material with stable physical and chemical performance. With the characteristics of high resistant temperature, low thermal conductivity, very good effect of insulation for fire and sound, lightweight and high specific strength. The board will never deformed and will not send out any irritant smoke and gas when burned and high temperature. Free from asbestos, is a pure green building material. So it’s very suitable for fireproof and sound insulation door. This kind of material had already widely used as the boards of fireproof and sound insulation doors in various field. The limited fire resistance is up to 90 min,even more than 120 min.This product have exported to USA, Canada and Japan, etc. And have already earned more honors from the customers.
board for steel door
board for wood door
260 – 340
270 - 350
Linear Shrinkage (1000℃×3h)
Sizes and Dimensional Tolerances
Length × Width (mm)
30 - 60
Length, width ±3, Thickness ±0.5
*According to the requirement of customer, we can make some special proceeding, such as making tenon and groove, joint together, etc.
*The high temperature adhesive for sticking core material & the high temperature glue for laminating core material with MDF, plywood and steel panel are also available here.
