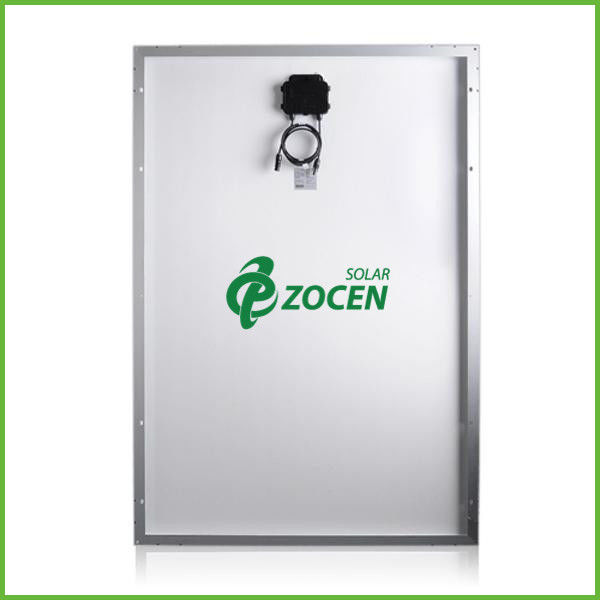

Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass

Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass

    • Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass
    • Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass
    • Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass
    • Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass
  • Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass

    Product Details:

    Place of Origin: China
    Brand Name: ZOCEN
    Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
    Model Number: ZCP6-72P-300W

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: 21 pieces per pallet
    Delivery Time: 5-10 days
    Payment Terms: Ex works
    Supply Ability: 1500 pcs / day
    Contact Now
    Detailed Product Description

    Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass



    1> Descriptions:

    • Product name: 300W Polycrystalline solar panels
    • Solar cell: 156*156mm(6 inch) Poly-crystalline, Anti-reflective coating
    • Tempered Glass: 3.2mm Low Iron, Mechanical load ≥2400Pa , transmittance ≥91.6%
    • EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
    • Back Sheet: high frame resistant & Double-sided fluorine TPT, reflectivity ≥87%, peeling strength ≥ 40N/cm.
    • Aluminum Frame: Anodized aluminum alloy to improve the corrosion resistance and strength
    • Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
    • Life time: 25 years
    • Power specification at 1kW/m 2, AM1, 5
    • Output cable: multi contact connectors

    2> Features:

    • High Performance Solar Panel
    • Monocrystalline Cells
    • Low Reflection of Sunlight
    • High Light Absorption
    • Functions perfectly under low light or panel being partly shaded
    • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
    • CHUBB insurance company to guarantee the quality



    3> Specifications

    • 300W Polycrystalline Solar Panel Electrical Characteristics
    Maximum Power(Pmax)
    300W
    Power Tolerance
    ±3%
    Open Circuit Voltage(Voc)
    44.8
    Short Circuit Current(Isc)

    8.73

    Maximum Power Voltage(Vmp)
    36.10
    Maximum Power Voltage(Imp)
    8.32
    Module Efficiency
    15.46%
    Max. System Voltage
    1000VDC
    Solar Cells

    Polycrystalline156*156mm(6 inch)

    Cells series
    72cs(6*12)
    Bypass Diodes
    6pcs 12A
    Temperature Coefficients of Pmax
    -0.47%/°C
    Temperature Coefficients of Voc
    -0.33%/°C
    Temperature Coefficients of Isc
    0.05%/°C
    NOTC-Nominal Operating Cell Tepm.
    45℃(±2°C)
    STC Condition
    1000W/m2, AM1.5, 25°C





    • 300W Polycrystalline Solar Panel Mechanical Characteristics
    Dimension
    1956*992*45(mm)
    Frame
    Anodized Aluminum Alloy
    Construction

    Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

    Output cables

    4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

    Weight
    22.5KGS



    • 300W Polycrystalline Solar Panel Packing configuration
    Container
    40“HQ
    Module dimension
    1956*992*45mm
    Pieces per pallet
    21 2
    Pallets per container
    22 11
    Pieces per container
    484





    4> 300W Polycrystalline Solar Panel Quality Control

    • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
    • Manufacturing facility certifed to ISO9001 Quality Management System standards.
    • Module packaging optimized to protect product during transportation and minimize on-site waste.



    5> Crystallines Solar Panel Application

    • Solar power station
    • Rural electrification, Small home power systems
    • Power supply for traffic, security, gas industry
    • 12V and 24V battery charging systems
    • Other industrial and commercial applications



    6> Production & Shipping



    Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass

    solar panels Production Shop





    Laminated 300W Polycrystalline Solar Panels with Low Iron Tempered Glass

    Shipment
