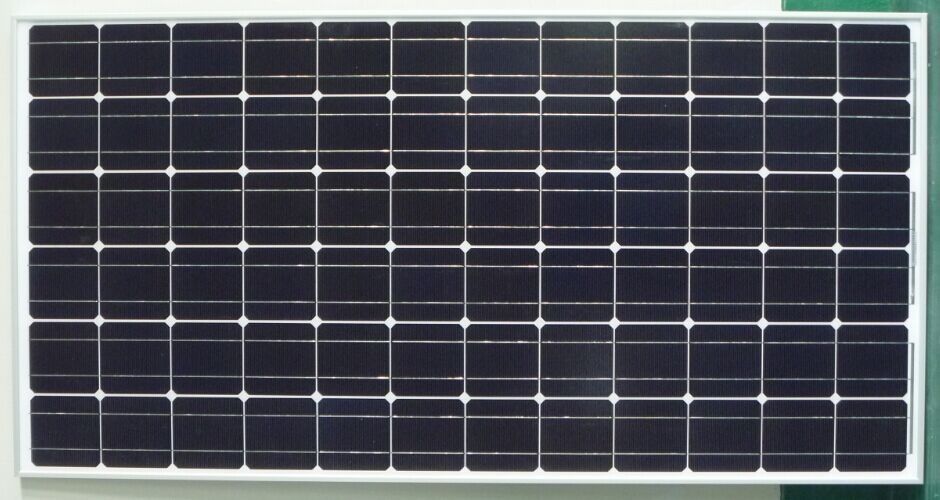

CE / CSA / TUV Approved Black House PV Solar Panel 72 Cells 185 Watt

CE / CSA / TUV Approved Black House PV Solar Panel 72 Cells 185 Watt

  • CE / CSA / TUV Approved Black House PV Solar Panel 72 Cells 185 Watt
CE / CSA / TUV Approved Black House PV Solar Panel 72 Cells 185 Watt
Product Details:
Place of Origin: China
Brand Name: CESC
Certification: CE/CSA/TUV
Model Number: M7X-185
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Packaging in carton or wooden case
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or LC at sight
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Product Name: MONO SOLAR PANEL Appliant: PV Genarate Electricity
Size Of Panel: 1580*808 Solar Cells Style: 125*125
Solar Cells Array: 6*12 Pcs Max Output Power: 185W
Standard: CE/CSA/TUV Grade: A Grade
Weight: 15.5Kg
High Light:

mono crystalline solar panel

,

monocrystalline silicon solar panels



High Efficiency 185 Watt Mono Solar Panel 1580 x 808 A grade For Home





Detailed Product Description



80W-320W Monocrystalline solar panel with certificate



Product Description



Solar Module Series --- Mono solar module





Features



1. High cell efficiency with quality silicon materials for long term output stability
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. Both Polycrystalline and Monocrystalline

5.

Excellent performance in harsh weather
6. Outstanding electrical performance under high temperature and low irradiance





Benefits



Manufactured in an ISO 9001:2000 certified plant

High efficiency ,  high safety , high reliability

Output power tolerance of +/-3%.

25 Years limited warranty on Power output.

3 Years limited warranty on materials and workmanship



Specification

Type

M7X-185

Mono or Poly

Mono

Maximum power (Wp)

185

Maximum Power voltage (V)

36.4

Maximum Power current (A)

5.09

Open circuit voltage (V)

45.0

Short circuit current (A)

5.48

Number of cells (Pcs)

72

Size of module (mm)

1580*808*35mm

Temperature coefficients of Pm (%)

-0.47%/℃

Temperature coefficients of Isc (%)

-0.35%/℃

Temperature coefficients of Voc (%)

0.05%/℃

Temperature Range

-40℃-85℃

Tolerance Wattage (e.g. +/-5%)

+3%

Weight per piece (kg)

15.5kg

Cell Efficiency (%)

>18%

Frame (Material, Corners, etc.)

Aluminum

Standard Test Conditions

AM1.5 1000W/m2 25℃

Warranty

10 years product warranty and 25 years 80% of power
