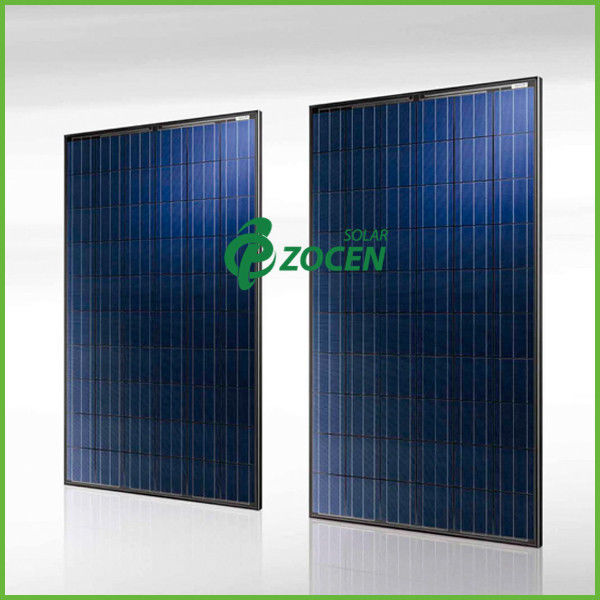

230W Low Iron High transmision Polycrystalline Solar Panels For Power Station

230W Low Iron High transmision Polycrystalline Solar Panels For Power Station

    • 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station
    • 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station
    • 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station
    • 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station
  • 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station

    Product Details:

    Place of Origin: China
    Brand Name: ZOCEN
    Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
    Model Number: ZCP6-60P-230W

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: 24 pieces per pallet
    Delivery Time: 10-15 days
    Payment Terms: Ex works
    Supply Ability: 200MW/year
    Contact Now
    Detailed Product Description

    Product Name
    230W Polycrystalline Solar Panel
    Model
    ZCP6-60P-230W
    Solar Cell
    156*156mm Polycrystalline solar cells
    EVA
    Anti-aging
    Cells in series
    60pcs in a 6*10
    Safety
    Class II
    Tempered Glass
    3.2mm Low Iron & Anti-reflective coating
    Size
    1640*992*40mm
    Back Sheet
    Double-sided fluorine TPT
    Life time
    25years
    Aluminum Frame
    Anodized aluminum alloy
    Tolerance
    0~3%



























    230W Low Iron High transmision Polycrystalline Solar Panels For Power Station





    2> Warranty & Certification

    • Warranty: 25-year linear performance warranty and 10-year product warranty
    • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
    • Insulation Class II / Safety Class II
    • CHUBB Insurance

    2> Quality Control

    • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
    • Manufacturing facility certifed to ISO9001 Quality Management System standards.
    • Module packaging optimized to protect product during transportation and minimize on-site waste.

    3> Features:

    • High Performance Solar Panel
    • Monocrystalline Cells
    • Low Reflection of Sunlight
    • High Light Absorption
    • Functions perfectly under low light or panel being partly shaded
    • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
    • CHUBB insurance company to guarantee the quality



    4> Specifications

    • 230W Polycrystalline Solar Panel I-V Curves

    230W Low Iron High transmision Polycrystalline Solar Panels For Power Station



    • 230W Polycrystalline Solar Panel Electrical Characteristics
    Maximum Power(Pmax)
    230W
    Power Tolerance
    ±3%
    Open Circuit Voltage(Voc)
    36.70
    Short Circuit Current(Isc)
    8.52
    Maximum Power Voltage(Vmp)
    29.40
    Maximum Power Voltage(Imp)
    7.83
    Module Efficiency
    14.14%
    Max. System Voltage
    1000VDC
    Solar Cells

    Polycrystalline156*156mm(6 inch)

    Cells series
    60cs(6*10)
    Bypass Diodes
    6pcs 12A
    Temperature Coefficients of Pmax
    -0.47%/°C
    Temperature Coefficients of Voc
    -0.33%/°C
    Temperature Coefficients of Isc
    0.05%/°C
    NOTC-Nominal Operating Cell Tepm.
    45℃(±2°C)
    STC Condition
    1000W/m2, AM1.5, 25°C





    • 230W Polycrystalline Solar Panel Mechanical Characteristics
    Dimension
    1940*992*40(mm)
    Frame
    Anodized Aluminum Alloy
    Construction

    Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

    Output cables

    4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

    Weight
    19.5KGS



    • Packing configuration
    Container
    40“HQ
    Module dimension
    1640*992*40mm
    Pieces per pallet
    24 4
    Pallets per container
    28 14
    Pieces per container
    728





    5> Crystallines Solar Panel Application

    • Solar power station
    • Rural electrification, Small home power systems
    • Power supply for traffic, security, gas industry
    • 12V and 24V battery charging systems
    • Other industrial and commercial applications
