3 Plate Mold ASSAB P20 Steel Custom Plastic Enclosures Injection Molding For Termina
HITOP MOULD.pdf
| Part Name |
Plastic Material |
mold plate |
Cavity |
Cavity/Core |
Mold standard |
Gate type |
Remarks |

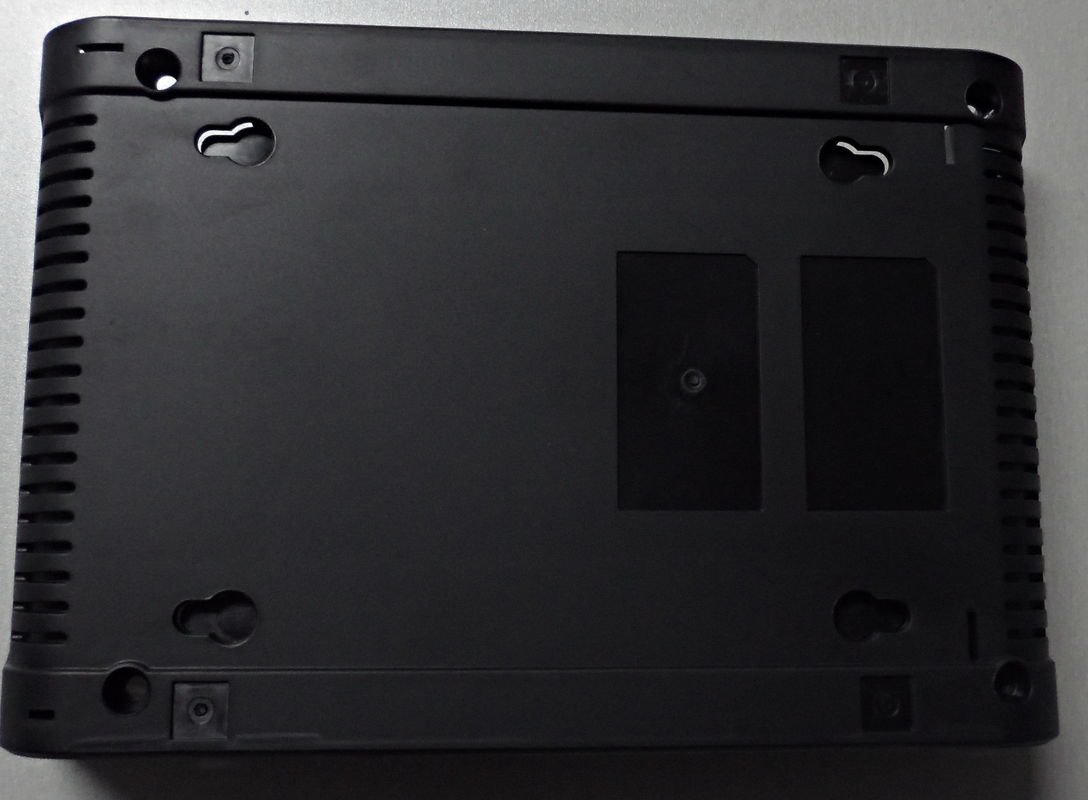

| bottom cover |
ABS |
3 plates |
1*1 |
ASSAB P20 |
DME |
edge gate |
texturing ,2 sliders |
|
1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as
|
|
2D drawing : Auto CAD , E –drawing
|
|
3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam
|
|
Mold Flow Analysis
|
|
|
|
2. We have a Project Management team to follow up the mold making :
|
|
Time Schedule: We will provide the time schedule every week to report the mold progress.
|
|
Dimensions report: Dimensions report will be submitted to customer together with the trial samples.
|
|
Heat Treatment and Steel Certificate
|
|
|
Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .
|
|
Mould material: P20 steel, H13, NAK80, 2344, 2343, S136, 420 etc .
Runner Cold runner: Yudo/moldmaster/incoe/Synventive
Certificate: ISO
Standard: HASCO, DME, LKM Misumi
Specification drawings:
Pro/E, Auto CAD, Solidwork, UG, CAD/CAM/CAE.
Precision machining :
CNC, milling machine, drilling machine, numerical lathe, all types of lathe
Surface finish process: polishing, texturing sand blasting, heat treatment, painting, electroplating, mirror polishing .
Shaping mould:injection mould and die-casting mould
Mould life: 1-2 million shots
What we can supply:
1. Auto parts mould
bumper mould, auto lights mold, handbrake , instrument desk , ashtray mold , storage mold , panel mold , dashboard mold, car door mold , interior plastic parts.
2. Motorcycle spare parts mould
rear view mirror mould,helmet mould,helmet glasses mould,fender mould,motorcycle side plate mould
3. Industrial products mould
holder mold, cover mold, pallet mould, crate mould
4. Commodity mould
food container(thin wall thickness) mould, tray mould, box mould, chair mould, toilet seat mould, table mould, desk mould, display case mold, laundry baskets mould, shopping basket mould, hanger mould, helmet mould, etc.
5. Home appliance mould
air cooler mould, air conditioner mould, washing machine mold, refrigerator mould, blender mould, vacuum cleaner mould, steam iron mould, massage chair mould, etc.
6. Medical device plastic cover holder body
