Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory

Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory

  • Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory
  • Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory
  • Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory
  • Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory
Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory
Product Details:
Place of Origin: China
Brand Name: Shennanyi
Certification: BS/CE/AS-NZS/GB/CCC/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meters
Packaging Details: Wooden Case
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C
Supply Ability: 12000 Square Meters/Month
Contact Now
Detailed Product Description
Color: Any Color Max Size: 2600*6000mm
Name: Laminated Safety Glass Shape: Flat And Curved
Thickness: 3mm - 25mm Usage: Building
High Light:

safety laminated glass

,

laminated tempered glass



Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory



Description:





The laminated glass is one kind of safety made under high temperature by interlaying PVB membrane between glasses. It can be two sheets or more than two sheets.





1. Features:



1) Safety Once broken, the broken pieces of laminated glass would not fall down or shoot away, enable the human or facilities be protected from hurt.


2) Safeguard The laminated glass has strong resistance against theft, malicious destruction and violence


3) Sound-insulation The PVB film has insulation function to the noise wave, thus the transferring of noise can be weakened.


4) Anti-UV The additive of PVB can filter 99% of the ultraviolet ray from the sunlight and protect the interior decoration from aging or fading caused by UV.


5) Heat-insulation The laminated glass(especially for colorful laminated glass) can reduce the solar radiation, saving energy and air-conditioning cost


6) Fire-proof When heated or roasted, the laminated glass will not break or collapse quickly so as to keep the fire from spreading. Time can be saved for warning, human’s evacuating and extinguishing
When broken by unexpected force, the broken pieces will be bonded by PVB with radial crack but hurting no people. The original shape and visibility can still be kept for continuous use for certain time.






2. Application:

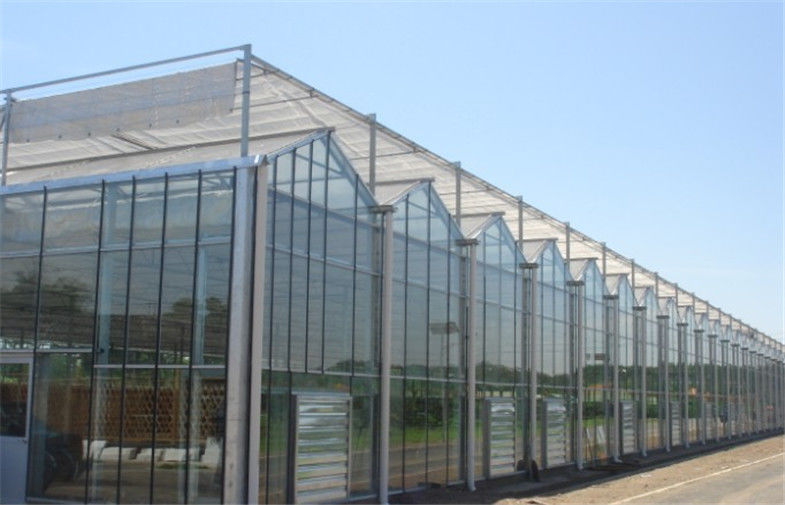

Using for building the Conservatory



Heat Insulation Toughened Laminated Glass Safety PVB For Conservatory 0


3. Specification:




Max Size: 2600*6000mm
Min Size: Any
Sole glass thickness: 3mm-25mm
Film thickness: 0.38mm and multiple of 0.38mm



Type: Flat laminated glass, Curved laminated glass, Tempered laminated glass, Laminated insulated glass



Each PVB film layer thickness is 0.38mm,we will use the right layers according to clients’ actual products






4. Quality:




AS/NZS 2208:1996 Safety glazing materials in buildings
In accordance with CE certificate EN14449:2005
In accordance with GB9962-1999

Pass Chinese Safety Glass Compulsory Certification (CCC).

In accordance with CE Standard







Specifications:





1. Product Name

Safety Glass Structures Conservatory

2. Color

Any Color

3. Thickness

3mm-25mm

4. Size

2600*6000mm

5. Shape

Flat and Curved

6. HS Code

7016909000

7. Trade Mark

Shennanyi

8. Export Market

Global

9. Packing

Wooden Case

10. Usage

Building
