700W Industrial Fume Extraction Systems Fume Purification Equipment Low Noise

700W Industrial Fume Extraction Systems Fume Purification Equipment Low Noise

700W Industrial Fume Extraction Systems Fume Purification Equipment Low Noise

Product Details:

Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6000D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 65x54x140cm/set, 75kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: Welding Fume Extractor Input Power: 700W
Filter: PP,glass Fiber,active Carbon Noise: Less Than 75 DB
Dimension: 550x415x1300mm Voltage: 110V-220V
Systemic Flow: 620m3/h Filtering Efficiency: 0.3micron 99.97%

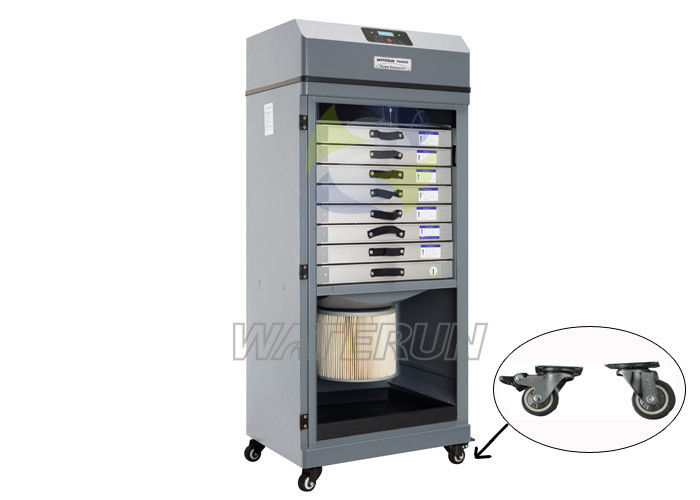

F6000D Big Power 700W Fume Purification Equipment for Multiple filtering



Specifications:



Model Number:

F6000D

Filters Quantity:

pre-filter 5pcs,PP filter 1pc,glass fiber filter 1pc, active carbon filter 5pcs

Voltage/Power:

110-220V, 700W

Systemic Flow:

620m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m

Noise:

Less than 75db

Dimensions(mm)

550 x 415 x 1300

Net weight

75kgs





Description:



Nowadays, 68% of human diseases related to air pollution.Most of the air pollution are from industry production, In the welding process, will generate a lot of smoke, 95% of the smoke generated from the solder particles, 5% is the harmful gases from solder flux. Also in cleaning, painting and other working environments will produce large amounts of harmful gases. And these pollutants on the operator and the environment will cause great harm. The solder smoke damage on the human body: It will cause dizziness, headache, respiratory infection, lung cancer and so on.



F6000D Welding Fume Extractors for Argon Arc Welding effectively remove the fumes generated in many electronics manufacturing processes.These efficient and economical fume extractors are easy to install, reliable and safe. The advantage is the high voltage and large volume brushless motor. With truly sensitive and effective “filter clogging alarm system” Multiple filtering ensure through purifying efficiency. Equipped with the remote control, the operator can control the machine from a distance.





Features:



1. Our fume extractor is specially designed for industrial welding fume and light weight particles, can be widely applied to many places that produce dust and oil fume and industries such as electronic wave soldering, metal processing, laser cutting, etc. It is very light and flexible. With a two-meter-long movable flexible pipe, it can be moved to different locations.



2. This kind of machine has incomparable disposal efficiency: at rated air volume, the welding fume elimination efficiency is above 99%, thus can discharge directly in the workshop.



3. Safe and stable: the Mobile Exhaust Gas Extractor has automatic detection and malfunction diagnosis function.



4. With Alfa movable arm that the Mobile Exhaust Gas Extractor can be stopped in any position of the three -dimensional space, the workers can work more efficiently.



5. The machine is easy to operate and maintain: when maintaining, what needed to be done is just to open the assess door and take out the electric field to soak and wash.



6. Pollution source can be treated by movable single machine or be treated in multi-station concentrated handling mode.



8. Low altitude emission of the processed air guaranteed.



Applications:



Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!



1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector





Competitive Advantage:



1. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.





2. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.



3. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.



4. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
