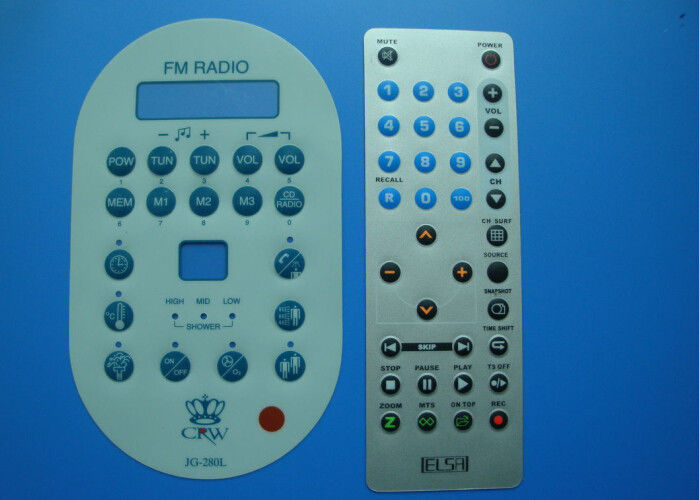

Thin Film Control Board Tactile Membrane Switches , Moisture Proof

Thin Film Control Board Tactile Membrane Switches , Moisture Proof

    • Thin Film Control Board Tactile Membrane Switches , Moisture Proof
  • Thin Film Control Board Tactile Membrane Switches , Moisture Proof

    Product Details:

    Place of Origin: China
    Brand Name: TKM MS
    Certification: ISO9001:2008, SGS,Rohs
    Model Number: TKM-MS--152

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Polybag per pcs,50per cartoon
    Delivery Time: 15-20days
    Payment Terms: T/T or L/C
    Supply Ability: 100000Pieces per month
    Contact Now
    Detailed Product Description
    High Light:

    membrane key switches

    ,

    membrane switch panel



    Thin Film Control Board Tactile Membrane Switches , Moisture Proof





    Quick Detail:



    Name

    Silicone MS

    Life time

    >1 Million times



    Color

    Transparent,red,yellow,

    green,blue.Pink.,purple

    Feature

    3M467 adhesive & PET/PC

    Insulation resistance:

    <100MΩ,250V DC

    Certificate

    RoHS







    Description:



    Silicone Telephone Keypad are the most popular user interface for a variety of reasons. They offer design flexibility at a low per unit cost. Some of the design options include:

    Integrate Multiple Silicone Colors

    Choose From a Variety of Materials

    Print Multiple Colors for Text and Legends

    Laser Etched Legends for Back Lighting

    Coating Options for Increased Durability

    Chemical and Environmental Resistance

    Liquid Injection Molded Products

    Plastic Key Caps

    Metal Keypads - Durable Construction, Custom & Stock Designs

    Carbon, Gold, and Copper Contacts





    Applications:



    1. The backlight applications: all kinds of electric computers, laptops, handheld game consoles, telephones, electronic organizers, electronic dictionaries, audio equipment, control panels, microwave oven control panel, fax machines, copiers, watches ...... etc.

    2. Automotive: Car instrument panel, warning lights, vehicle exteriors, decorative door bar, third brake light ...... etc.

    3. Architecture and interior applications: elevator floor marking, labeling instructions escape, decorative wall lights, night landscape decorative building, interior decorating

    4. Toys, gifts: all kinds of toys, light source, light frame, EL photo, Valentine's cards, badges and other consumer product applications

    5. Public places of business equipment, machinery: bus stop, public phone booths, coin-drinks machine on the bus route licensing ...... etc.





    Specifications



    Contact resistance

    10 to 500Ω (varied from the trace length and material)

    Tactile type life expectancy

    1,000,000 closures or more

         Maximum circuit rating

    35V DC, 100mA, 1W

    Operating temperature

    -40 to +80C

    Storage temperature

    -40 to +85C

    Tactile type actuation force

    150 to 400g (6 to 14oz)

    Contact bounce

    5ms or less

    Dielectric withstand

    250Vrms (50 to 60Hz/minute)

    Tactile type switch stroke

    0.6 to 1.5mm

    Insulation resistance

    100MΩ at 100V

    Surface hardness

                   3H or more

    Operating humidity

             90 to 95%RH (at 40C ) for 240 hours





     Competitive Advantage



    Silicone Rubber Molding and Keypads



    QUALITY:  High quality equipment and materials provide durability and consistency in your product. HHC is a family owned and operated business and has many years experience in manufacturing Silicone Rubber Keypad, Silicone Telephone Keypad etc.



    PRICING : HHC offers world class service and pricing.  And we have developed tooling methods that can save the customer thousands of RMB off standard prices!



    FREE DESIGN: Our rubber tooling cost includes 3D modeling from a 2D file at no additional cost. We can also reengineer a keypad from a customer provided sample at no additional cost. Our engineering staff has designed kinds of silicone keypad and can offer free design assistance.



    PROTOTYPES: Our standard lead times are among the best in the industry. However, if you need something faster RSP has developed a process for manufacturing short run production quality silicone rubber keypad in 7-10 days. Keypads can be done in multiple silicone colors with multiple print colors for no additional charge.
