Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm

Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm

    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
    • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm
  • Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm

    Product Details:

    Place of Origin: China
    Brand Name: ZOCEN
    Certification: CE,CQC,IEC,TUV,CEC,MCS,CHUBB, ISO9001
    Model Number: ZCBIPV-180

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Delivery Time: 5-10 days
    Payment Terms: Ex works
    Supply Ability: 200MW/year
    Contact Now
    Detailed Product Description

    Quick Detail:

    Place of origin China(Mainland) Brand name ZOCEN
    Model ZCBIPV-180 Materials 125*125mm Mono solar cell
    Size 1000X1700mm Number of Cells 72pcs(6*12)
    Max. Power 265W Positive tolerance +3%

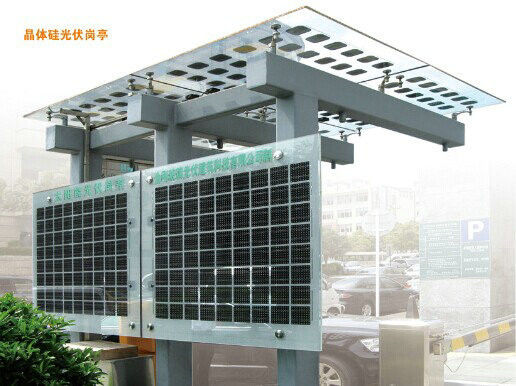

    What is BIPV?

    Building-Integrated Photovoltaics (BIPV) are photovoltaic systems which are built into a building, rather than being added on at a later date. Ideally, BIPV are incorporated into the design of a building in the early planning stages. The architect works with photovoltaic engineers and other experts to create a design which will be aesthetically pleasing and effective.



    BIPV Applications

    > Roof, Skylight, Facade, Sunshade, Balustrade, Floor

    > Point-fixed System, Visible Frame, Semi-visible Frame, Invisible Frame

    > Residential, Commercial, Public Buildings

    > New and Existing Construction

    > On-grid Utility and Commercial Systems

    Features of Transparent Solar Panel

    > Glass-glass module is employed directly as materials of spandrel, cladding, roof improving appeal visually

    > Sandwiched high efficiency cells gives robust performance

    > Top quality EVA interlayer ensures product warranty and safety

    > Frameless, tailor-made specification, variable light transmission and multi-color option enable architectural design freely



    Description:

    > Product name: Transparent PV double glass solar panel / module

    > Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.

    > Tempered Glass: Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%

    > EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%

    > Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.

    > Junction Box: IP67 rated, 3 bypass Diodes + 90cm 4mm2 Solar Cable



    > Life time: 25 years

    > Power specification at 1kW/m 2, AM 1, 5

    > Output cable: multi contact connectors

    > Resistance: 277 steel ball falls down from 1m height and 60m/s wind

    > Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.

    > Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO



    Black Custom Shaped 1000VDC big Double Glass Solar Panel 1000*1700mm





    Features:



    > More than 7 years experience of solar module encapsulation

    > fully germany automatic welding machine and lay-up

    > CHUBB insurance company to guarantee the quality of our products

    > 100% EL TEST before and after laminator

    > Annual capacity: 200mw/year, which is Full Automatic Production Line, from single cell soldering to framing are all performed by equipments. Our total capacity is scheduled to reach 500mw/year until 2015.

    > 31MW solar module have been used in Chinese major grid-connected projects.

    > Own 45 patents and 3 module production bases in different cities.

    > So we guarantee each piece of our panel has perfect appearance, positive power performance, and without quality hidden trouble.







    Electrical Characteristics



    Maximum Power(Pmax) 180W
    Power Tolerance ±3%
    Open Circuit Voltage(Voc) 44.70
    Short Circuit Current(Isc) 5.23
    Maximum Power Voltage(Vmp) 36.50
    Maximum Power Voltage(Imp) 4.93
    Transparence 40%
    Glass thickness 4mm+PVB+cell+PVB+4mm
    Module Efficiency 18.76%
    Max. System Voltage 1000VDC
    Cell Size and Series Mono-crystalline 156*156mm(6 inch) 60pcs(6*10)
    Bypass Diodes 3pcs 12A
    Temperature Coefficients of Pmax -0.44%/℃
    Temperature Coefficients of Voc -0.33%/℃
    Temperature Coefficients of Isc 0.055%/℃
    NOTC-Nominal Operating Cell Temperature 45℃(±2℃)
    STC Condition Irradiance level 1,000W/P㎡, Spectrum AM1.5, and Cell Temperature 25℃





    Mechanical Characteristics



    Dimension(mm) 1000*1700*10mm
    Frame Black Anodized Aluminum Alloy
    Construction

    Front: High transmisiion 3.2mm

    Tempered glass

    Rear: Black polyester;

    Encapsulant: EVA

    Output cables

    4.0m㎡ 12AWG CABLE WITH WEATHERPROOF CONNECTORS.

    Cable lengths 900mm

    Weight 45.00KGS
