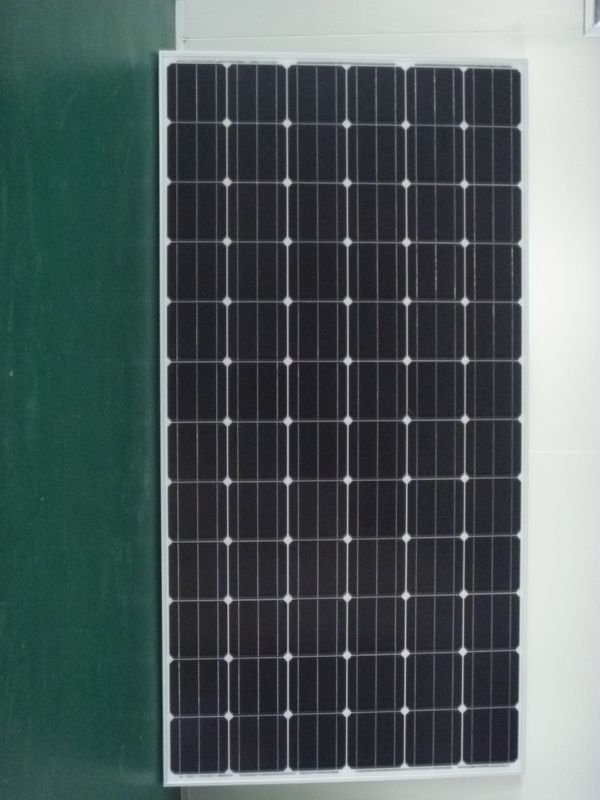

Large 300 Watt Commercial Mono Solar Panels for Outdoor Lighting , CE

Large 300 Watt Commercial Mono Solar Panels for Outdoor Lighting , CE

    • Large 300 Watt Commercial Mono Solar Panels for Outdoor Lighting , CE
  • Large 300 Watt Commercial Mono Solar Panels for Outdoor Lighting , CE

    Product Details:

    Place of Origin: China
    Brand Name: CESC
    Certification: CE/CSA/TUV
    Model Number: M7Y-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Packaging in carton or wooden case
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T or LC at sight
    Supply Ability: 3,0000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: MONO SOLAR PANEL Using: PV Genarate Electricity
    Size Of Panel: 1956*992 Solar Cells Style: 156*156
    Solar Cells Array: 6*12 Pcs Max Output Power: 300W
    Standard: CE/CSA/TUV Grade: A Grade
    Weight: 22.5Kg
    High Light:

    mono crystalline solar panel

    ,

    monocrystalline silicon solar panels

    High Efficiency 300 Watt Mono Solar Panel 1956 x 992 A grade For Home



    Detailed Product Description



    80W-300W Monocrystalline solar panel with certificate





    Advantage:



    1. High cell efficiency with quality silicon materials for long term output stability and reliability.

    2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

    3. Unique frame design with high mechanical strength for easy Installation.

    4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions





    Features



    High efficiency solar cells

    High transparent low – rion tempered glass

    Water resistant junction box

    Anodized aluminiu frame

    Design to meet unique demand of customer





    Benefits



    Manufactured in an ISO 9001:2000 certified plant

    High efficiency ,  high safety , high reliability

    Output power tolerance of +/-3%.

    25 Years limited warranty on Power output.

    3 Years limited warranty on materials and workmanship



    Specification



    Type

    M7Y-300W

    Mono or Poly

    Mono

    Maximum power (Wp)

    300

    Maximum Power voltage (V)

    36.7

    Maximum Power current (A)

    8.19

    Open circuit voltage (V)

    44.9

    Short circuit current (A)

    8.73

    Number of cells (Pcs)

    72

    Size of module (mm)

    1956*992*45mm

    Temperature coefficients of Pm (%)

    -0.47%/℃

    Temperature coefficients of Isc (%)

    -0.35%/℃

    Temperature coefficients of Voc (%)

    0.05%/℃

    Temperature Range

    -40℃-85℃

    Tolerance Wattage (e.g. +/-5%)

    +3%

    Weight per piece (kg)

    22.5kg

    Module Efficiency (%)

    >15.5%

    Frame (Material, Corners, etc.)

    Aluminum

    Standard Test Conditions

    AM1.5 1000W/m2 25℃

    Warranty

    10 years product warranty and 25 years 80% of power
