Hot curved glass laminated toughened glass Guangzhou Opera House

Hot curved glass laminated toughened glass Guangzhou Opera House

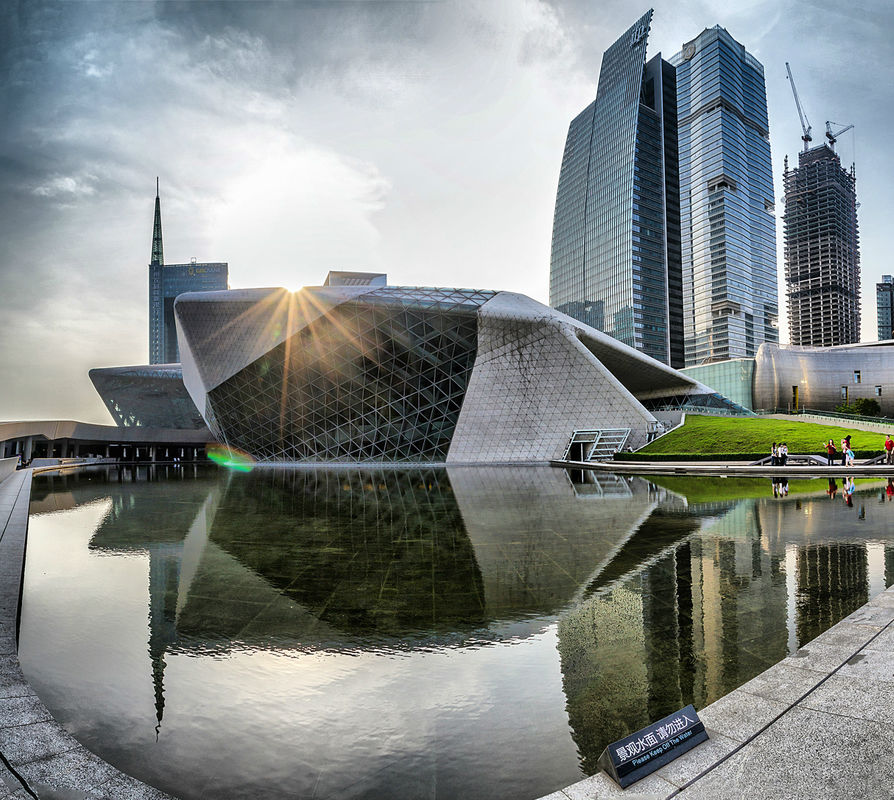

Project Name: Guangzhou Opera House 2009

Location: Guangzhou, China

Glass Shape: Multi-curved glass

Glasss Assembly: 12mm clear+12AS+8mm CSG Low-E+1.52PVB+8mm clear curved glass

Time: 2009

Architect: Zaha Hadid

Quick Detail

1. Thermal stability

2. Anti-wind pressure ability

3. Deflection performance

4. Standard Q/SNY-1999

5. Safety glass

6. Less light aberration

7. Good Accuracy in arc

8. Mechanical attack resistance performance

Description:

Hot curved glass is made of float glass which is firstly heated to soften point on metal mould and then curved to shape by weight of glass itself and outside force, and finally cooled down.


1. Features:

Safety, mechanical attack resistance performance and thermal stability, anti-wind pressure ability and deflection performance.
Tempered Curved glass: Good accuracy in arc, less light aberration.

2. Application:

It is used in curtain wall with curved structure, skylight, sightseeing elevator, Hyperboloid and taper shape buildings.
Tempered curved glass: Curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure, glass enclose etc.

3. Specification:

Thickness: 3mm-25mm
Max size: 2800*6400 Min size: 50*50mm
Radius: 200mm-2800mm Max Arch Height: 1200mm

Any shape according to customers’ requirement is available, for example S form, U form, right-angle and spherical surface

4. Quality:

In accordance with Standard Q/SNY-1999 Hot Curved Glass
In accordance with CE Standard
Pass Chinese Safety Glass Compulsory Certification (CCC).
