Laminated Glass Autoclave For Chemical Industrial / Glass Production Autoclave

Product Details:

Place of Origin:	CHINA
Brand Name:	MINGJIE
Certification:	ISO9001：2008
Model Number:	ZYF-0002

Payment & Shipping Terms:

Minimum Order Quantity:	ONE
Price:	negotiable
Packaging Details:	Standard export packing
Delivery Time:	60days after deposit
Payment Terms:	T/T or L/C
Supply Ability:	200sets/year

Contact Now

Detailed Product Description

High Light:

autoclave equipment

Steam Pressure Autoclave

Laminated Glass Autoclave For Chemical Industrial Glass Production Autoclave

1. Product Description:

Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process. Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.

2. Feature and details

1)water shower or spray type sterilization , raise/drop temp/pressure very precise
2)small water amount, save energy
3)ten step temp/pressure settings , make the pressure control perfect
4)PLC and touches screen, reliable and easy to access
5)SUS304 good grade material used
6)whole machine quality warranty : 1-2 years
7)paper or paperless recorder, easy print heat distribution recorder
8)operator training and user factory installation.

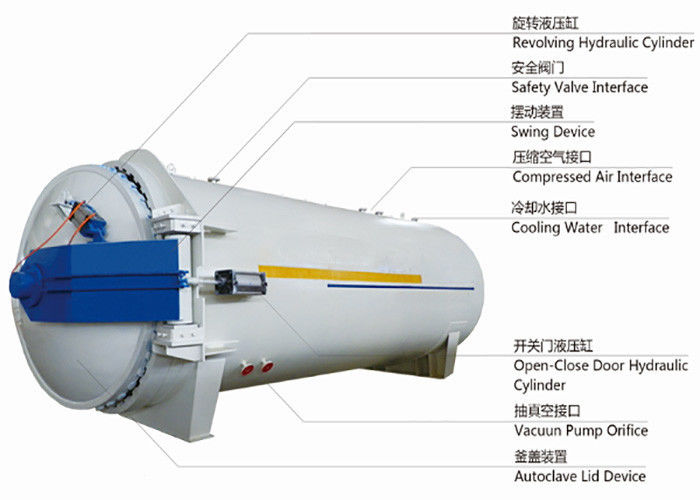

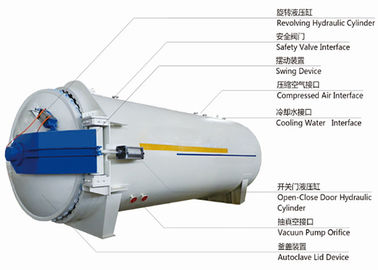

3. Equipment constitutes
The equipment is made up of two subsystem of independent function.
1)Body
A horizontal pressure equipment with electrical opening structure,there are heating element and cooling device inside,in the body also arranged circular duct and trolley track, the body is equipped with door opening safety interlock device, implement autoclave's door opening triple protection.
2) Control system
The system can be divided into two type:one is manual control system;another is auto control system,they can be equipped according to the user's requirement.Control the opening/closing and heating process automatically by the system,the autoclave is equipped with the instrument which is used to control automatically,temperature and pressure can be adjusted according to process requirements ,it is very safe with the overpressure and over-temperature alarm system

4. specifications

Items	Unit	Specifications and Parameters
Items	Unit	MJ1.4-1.65×4D	MJ1.5-2×5D	MJ1.5-2.5×5D	MJ1.5-2.68×5D	MJ1.5-2.85×5D
Inside diameter	M	1.65	2	2.5	2.68	2.85
Effective length	M	4	5	5	5	5
Design pressure	Mpa	1.4	1.5	1.5	1.5	1.5
Design temperature	°C	150	150	150	150	150
Working pressure	Mpa	1.3	1.4	1.4	1.4	1.4
Working temperature	°C	150	150	150	150	150
Medium		air	air	air	air	air
Gauge	MM	900	1000	1000	1000	1000
Effective volume	M3	10	18	25	28	31
Gross weight	T	7	9	16	25	30
Overall dimension	M	6×2.5×3	7×2.8×3	7×3×3.5	7.8×3.2×3.8	9×3.5×5

5. Hot sale model

Model	Inner Dia(mm)	Length(mm)	Glass Mix Size(mm)	Max. Pressure(Mpa)	Max. tem(°C)	Power(kw)
BLZYF-0001	2000	5000	1600*5000	1.5	150	2.6
BLZYF-0002	2500	5000	2100*5000	1.5	150	1.6
BLZYF-0003	2650	6000	2200*6000	1.5	150	2.0
BLZYF-0004	2850	6000	2440*6000	1.5	150	2.2
BLZYF-0005	2850	6000	2440*8000	1.5	150	2.2
BLZYF-0006	3000	8000	2500*8000	1.5	150	2.6
BLZYF-0007	3500	8000	3050*8000	1.5	150	2.6
